SKY15-P20A
Artillery Targeting UAV Display System
- Military Ground Vehicle Targeting Display
- Anti-Shock : 20mm Cannon Shock Resistance
- Extended Temperature -40°C to 60°C
- MIL-STD-810 Vibration Method 514.6: ◎Acceleration : 5.0 Grms
- MIL-STD-810 Vibration Method 514.6: ◎PSD : 0.01257 g2/Hz
- MIL-STD-810 Shock Method 516.6 : ◎Wave Form: Half Shine Wave
- MIL-STD-810 Shock Method 516.6 : ◎Acceleration: 40G
- Sunlight Readable 1000 Nits
- 20 Programmable function keys
- Heavy-Duty Rugged Aluminum
- 18V~36V Ground Vehicle Power
- Technical Profile
- Specifications
- Introduction
-
Next-Generation Rugged Artillery Targeting UAV Display Enhances Precision and Battlefield Durability
7StarLake, a leader in advanced defense technology, proudly introduces its latest rugged artillery targeting UAV display -SKY15-P20A engineered to withstand the most extreme combat conditions while providing unparalleled targeting accuracy. Designed for mission-critical operations, this cutting-edge display integrates seamlessly with modern targeting systems, ensuring superior performance in the harshest environments.
Key features of the new military-grade display include:
✅ Unmatched Durability
Built to endure extreme battlefield conditions, the display boasts anti-20mm cannon shock resistance and an ultra heavy-duty aluminum enclosure, ensuring maximum protection against impact, vibration, and environmental hazards.
✅ Versatile Mounting Options

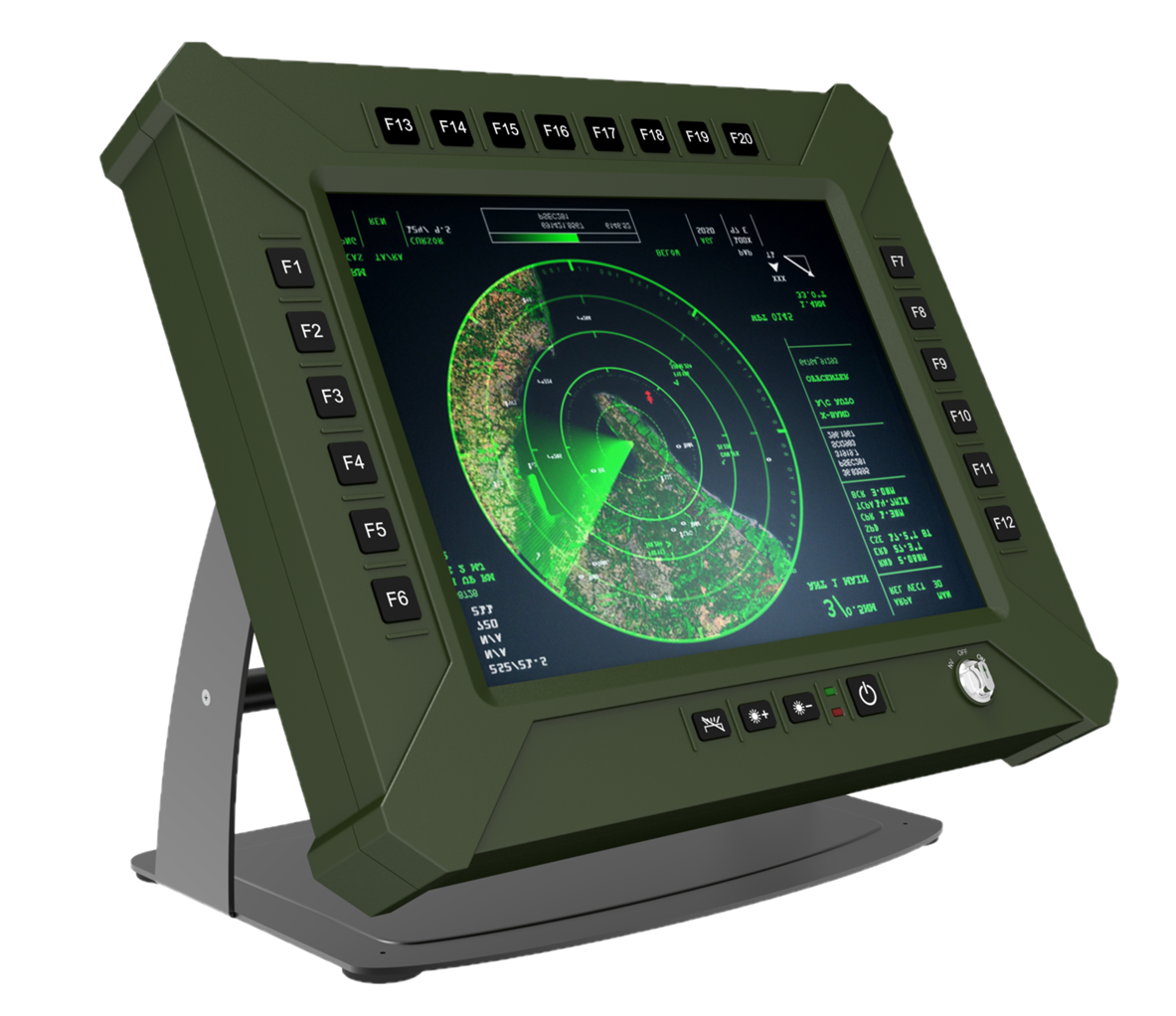

Designed for ultimate flexibility, the system features multi-mounting holes for complete compatibility with brackets, holders, and other mounting solutions, allowing for effortless integration into various military vehicles and UAV platforms.
✅ Superior Visibility in Combat
The sunlight-readable display ensures soldiers and UAV operators can clearly view and engage targets in bright daylight conditions, enhancing precision and operational efficiency.
✅ Seamless Sensor Integration

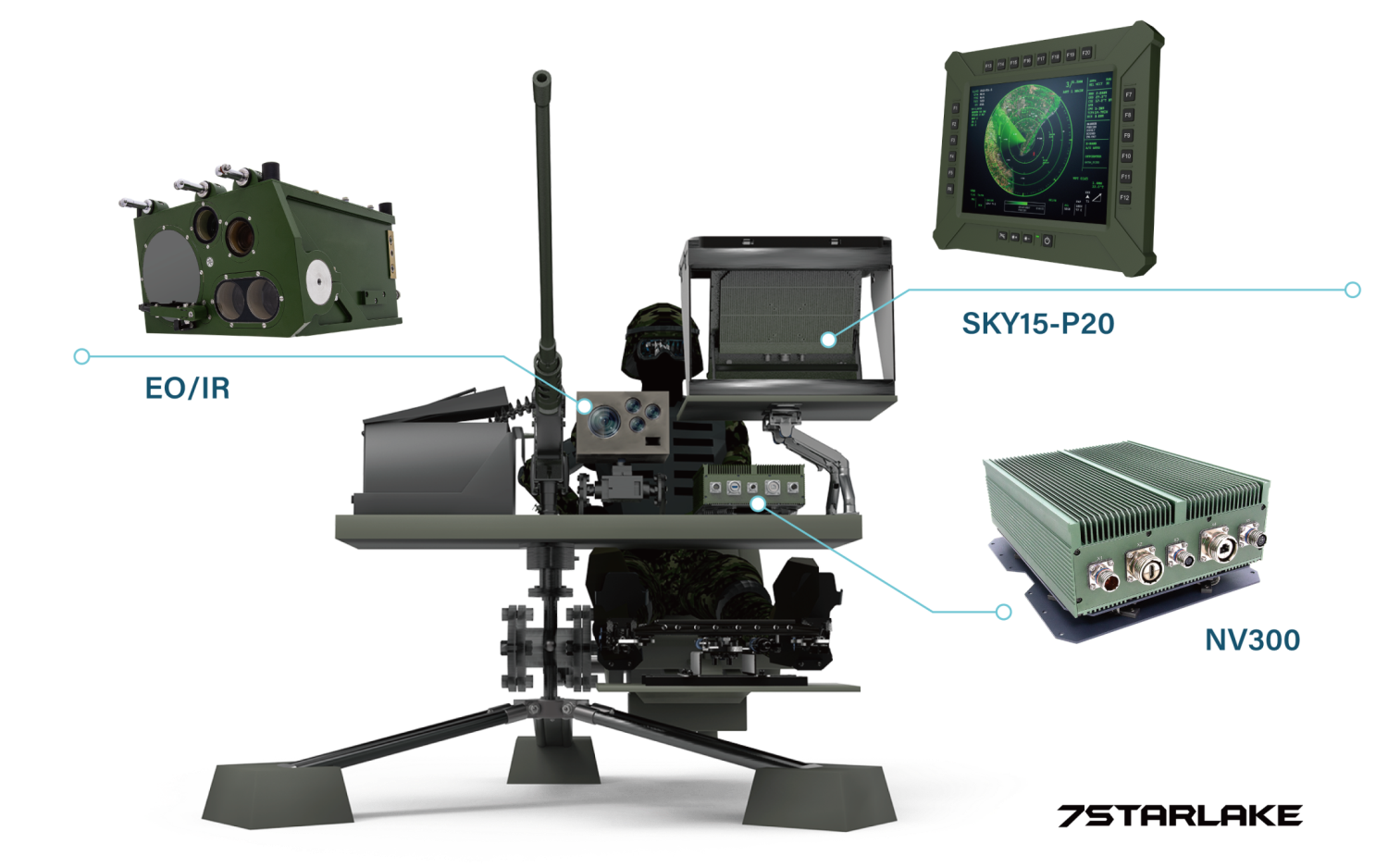

Equipped with a DTL 38999 I/O connector, the display seamlessly interfaces with electro-optical (E/O) and infrared (IR) sensors, enabling robust data access and real-time targeting intelligence.
✅ Customizable Functionality
Featuring programmable function keys, operators can tailor the display for quick-access commands, enhancing response time in high-stakes scenarios.
This state-of-the-art artillery targeting UAV display sets a new standard for military-grade targeting solutions, delivering unmatched durability, visibility, and reliability. Whether deployed in armored vehicles, UAVs, or advanced weapon systems, it ensures mission success in the most demanding combat environments.
- Unique Features
-
(1) Sunlight Readable up to 1000 Nits
SKY15-P20Aruggedized smart display can support sunlight-readable to meet high ambient light conditions such as direct sunlight, it also adopt our excellent optic bonding technical process, when bonded together the light passes through the bonded layers and is absorbed somewhat into the screen. Optical bonding is therefore important in making screens sunlight readable.
(2) MIL-DTL 38999
MIL-DTL-38999 is a high-performance cylindrical connector family designed to withstand the extreme shock, exposure and vibration that are commonplace in Defense and aerospace applications. Made with removable crimp or fixed hermetic solder contacts, these connectors provide high-vibration characteristics and are suitable for severe wind and moisture problem areas
(3) G.F.G Resistive Screen
GFG screens. The glass surfaces makes the glass-film-glass sensor very durable and scratch resistant (7H).
(4) Soft Touch Button

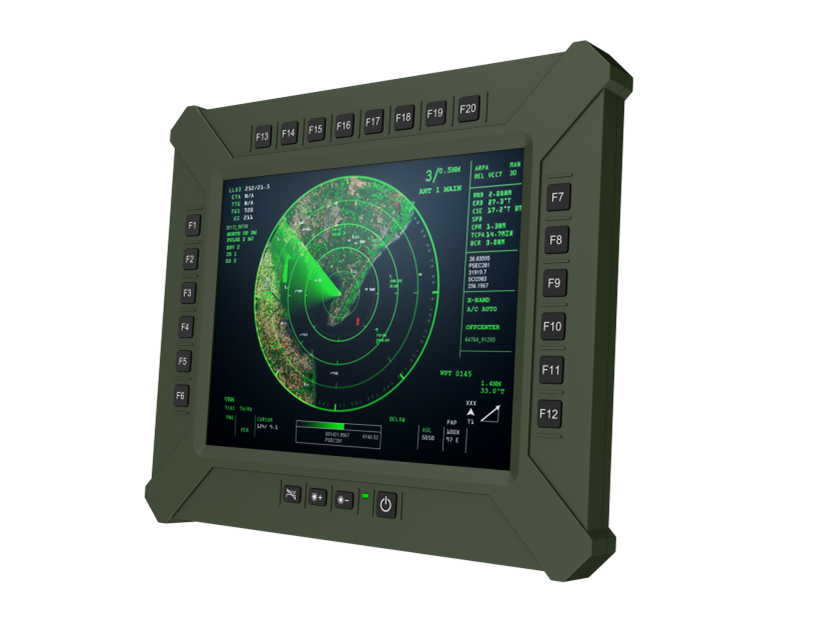

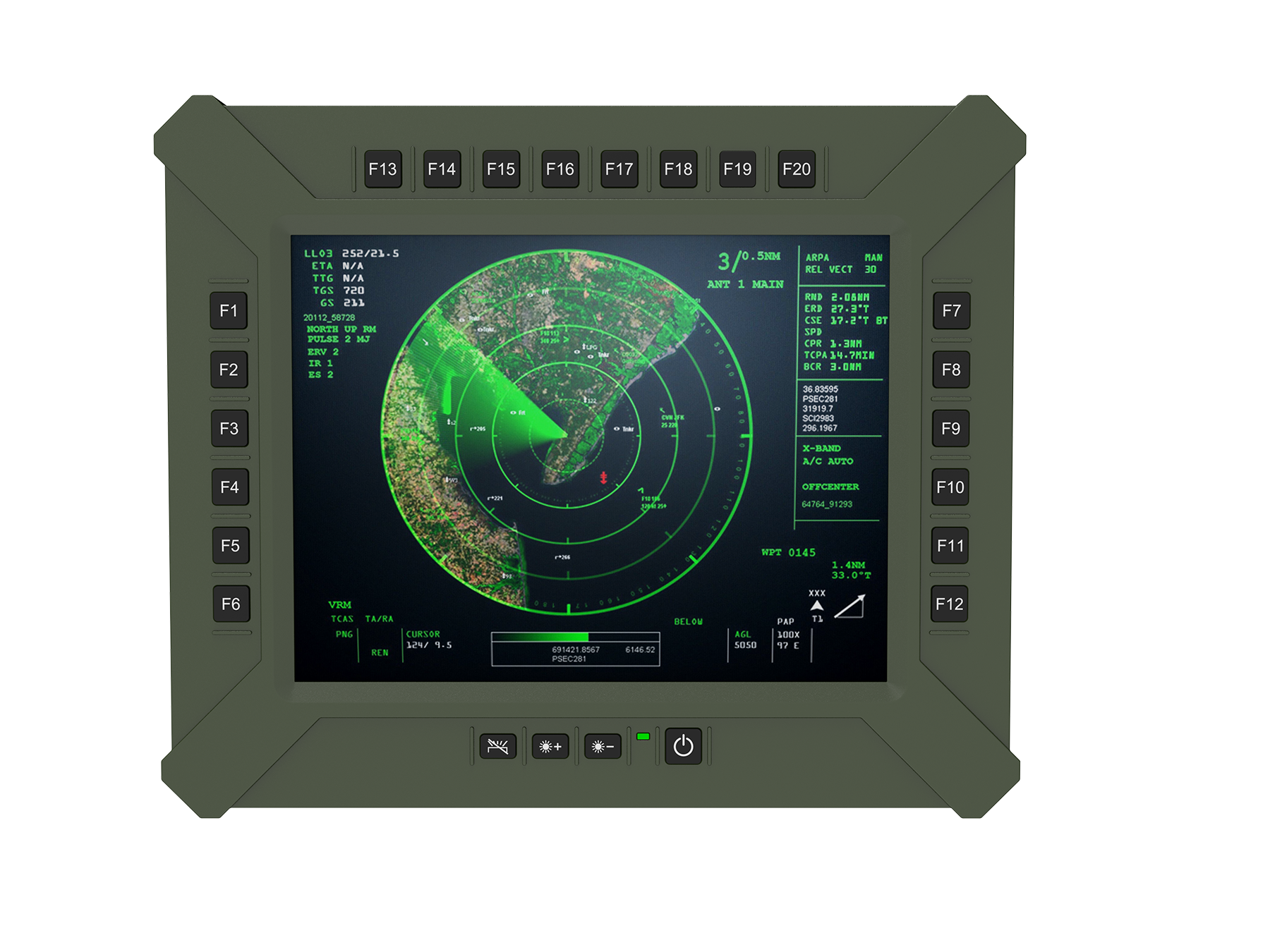

SKY15-P20A equipped up to 20 programmable function keys, 2 OSD keys, 1 power button by rubber-tooling made, each key pad dimension at 16 x 16 mm even the operator access function keys with wearing MOPP levels gloves.
(5) IP65 Certified
SKY15-P20A has complete resistance to dust and water; which is ruggedized and reliable for constrained military, ground army and defense.
(6) MIL-STD 810 Compliance
SKY15-P20A compliances of MIL-STD-810 for shocks, vibration etc; SKY15-P20A is rigorously field-tested to meet or exceed MIL-STD810G a for extremely high & low temp. humidity, shock, and vibration.
(7) MIL-461/1275 EMI Filter
SKY15-P20A is designed with MIL-STD-1275/704, protecting against vehicle/aircrafts voltage surges, spikes and transients, and even electromagnetic interference. This characteristic is well suited for the strictest military requirement and deliver optimal performance in harsh conditions.
(8)Intelligent Heater (Optional Feature)
Due to consider boot up in extreme cold environment, SKY15-P20A is designed /w intelligent heater to control temperature automatically
(9)Waterproof Value
SKY15-P20A has completely waterproof to balance atmospheric pressure to meet different altitude environment
(10) EMI Shielding Cable Kits
Electromagnetic Interference (EMI) is prevalent throughout the anywhere. The main purpose of effective EMC Shielding is to prevent electromagnetic interference (EMI) or radio frequency interference (RFI) from impacting sensitive electronics. This is achieved by using a metallic screen to absorb the electromagnetic interference that is being transmitted through the air. The shield effect is based on a principle used in a Faraday cage – the metallic screen completely surrounds either the sensitive electronics or the transmitting electronics. The screen absorbs the transmitted signals, and causes a current within the body of the screen. This current is absorbed by a ground connection, or a virtual ground plane. By absorbing these transmitted signals before they reach the sensitive circuitry, the protected signal is kept clean of electromagnetic interference, maximizing shielding effectiveness.
15” TFT LCD Display & Resistor Touch screen |
||
---|---|---|
Resolution |
1024 x 768 |
|
Brightness |
Up to 1000 Nits |
|
Aspect Ratio |
4:3 |
|
Contrast Ratio |
4000:1 |
|
Touch Panel |
Glass-Film-Glass panel (Options: 5-Wire resistor touch) |
|
System SPEC |
||
Function key |
Programmable Function Keys (F1~F20) |
|
DC-IN |
9V~36V DC-IN, 28V DC |
|

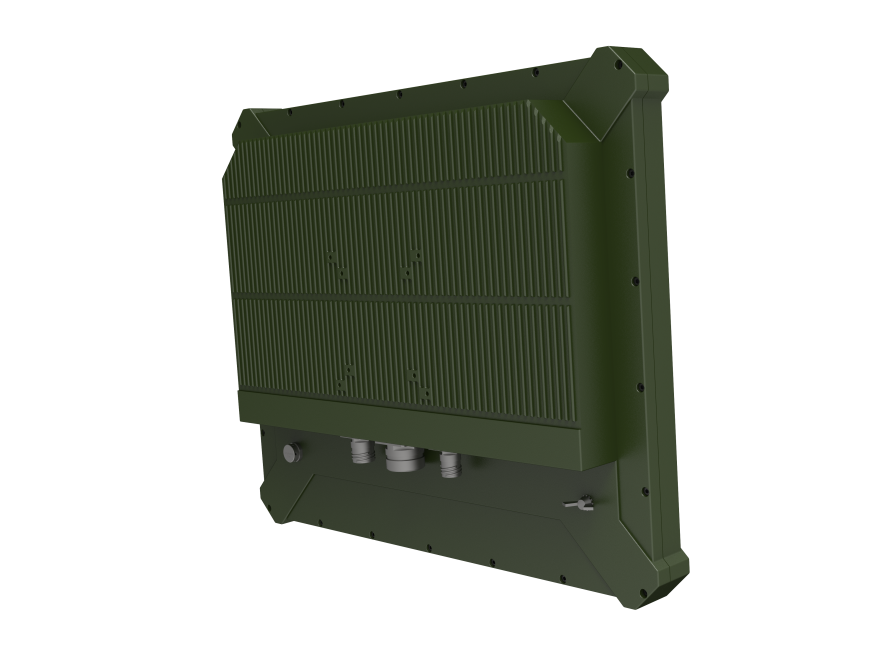

Rear I/O |
||
1x Water Proof Valve | ||
X1 | 1x DC-IN with MIL-38999 connector | |
X2 | 1x HDMI with MIL-38999 connector | |
X3 | 1x USB2.0 with MIL-38999 connector | |
GND screw | 1x | |
Applications |
||
Applications |
Marine, Naval, Ground and Airborne environment. |
|
Physical |
||
Dimension |
442.5 x 72 x 370 mm |
|
Weight |
12.0 kg (26.43 Ib) |
|
Chassis |
Aluminum Alloy, Corrosion Resistant. |
|
Finish |
Anodic aluminum oxide (Color Olive green) |
|
Ingress Protection |
IP65 Dust /water Proof |
|
MIL Compliance |
||
MIL-STD-810 (Operation Test) |
||
Low Temp. |
Method 502.5 Procedure 2 |
Exposure(24h x 3 cycle) at -10℃ min. |
High Temp. |
Method 501.5 Procedure 2 |
60ºC for 2 hrs after temperature stabilization. |
Humidity |
Method 507.5 Procedure 2 |
RH -95%. Test cycles: ten 24-hrs , functional test after 5th and 10th cycles |
Vibration |
Method 514.6 Category 20 |
10-500Hz 1.04Grms Test duration: 1 hr x 3 axis (total 3 hrs) |
Shock |
Method 516.6 Procedure 1 |
20G, 11mSec, 3 per axis |
MIL-STD-810 (Non-Operating Tests) |
||
Low Temp. |
Method 502.5 |
Exposure(24h x 7 cycle) at -20℃ min. |
High Temp. |
Method 501.5 Procedure 1 |
71ºC for 2 hrs after temperature stabilization. |
Vibration |
Method 514.6 Category 24 |
200 to 2000Hz Test duration: 1hr per axis; rms = 7.7 gs |
Shock |
Method 516.6 Procedure 1 |
20G, 11mSec, 3 per axis |
MIL-STD-461 |
||
CE102 |
Basic curve, 10kHz - 30 MHz |
|
RE102-4, (1.5 MHz) |
(1.5 MHz) -30 MHz - 5 GHz |
|
RS103 |
1.5 MHz - 5 GHz, 50 V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV, |
|
Environmental Qualifications |
||
---|---|---|
Regulatory |
CE ,FCC Compliance |
|
Operation Temp. |
-20°C to +60°C |
|
Storage Temp. |
-40°C to +85°C |
|
Green Product |
RoHS, WEEE compliance |
