X7-Rugged
GPU-Powered Military Laptop | Sensor-to-Decision in One Unit
- Intel® 13th Gen Core™ i7/i5 Processors
- NVIDIA Quadro A1000/1050Ti
- FHD 350 & 1000 Nits Sunlight Readable Multi-touch Display
- 2 x GLAN Ports with D38999 Connector
- Swappable NVMe M.2 Storage (optional)
- IP65/MIL-STD-810/461 for Extreme Temperatures, Shock and Vibration
- Extended Temperature -20°C ~+55°C
- Technical Profile
- Specifications
- Order Information
- Video
- Sensor-to-Decision in One Unit
-
Designed for mission-critical operations, the 15.6" rugged Military Laptop X7-Rugged integrates CPU, GPU, 10G fiber and PoE connections into a single portable platform, enabling real-time sensor-to-decision capabilities for RF signal analysis, UAV ground control, and coastal radar systems.
- GPU Acceleration for AI Sensor Fusion
-
Powered by Intel®13th Gen Core™ i7/i5 processor, the Military Laptop X7-Rugged is purpose-built to deliver cutting-edge computing performance in the harshest environments, delivering server-grade power in a compact, energy-efficient SWaP-C form factor. Equipped with the NVIDIA Quadro A1000/1050Ti GPU, the X7-Rugged provides next-gen AI acceleration, advanced visualization, and high-performance parallel computing to support real-time data analysis, mission planning, and situational awareness. This enables operators, field engineers, and defense professionals to process massive datasets, render complex 3D environments, and make faster, data-driven decisions on the edge without compromising mobility.
- 10G Fiber and Dual PoE for Real-time Intelligence
-
Engineered for mobility and rapid deployment, the X7-Rugged delivers high-bandwidth, low-latency communication through dual GLAN ports, ensuring seamless integration with external sensors. With PCIe 4.0 NVMe M.2 storage, the X7-Rugged offers exceptional data throughput, built-in redundancy, and secure, instant access to mission-critical information.
- MIL-STD-810/461 and IP65 Ruggedization
-
Built to meet MIL-STD-810 for environmental durability and MIL-STD-461 for electromagnetic interference control, the IP65-rated X7-rugged withstands extreme temperatures, shock, vibration, and EMI in demanding operational environments. Its IP65-rated enclosure provides protection against dust, water, and other environmental hazards, while a sunlight-readable display ensures uncompromised visibility in outdoor and high-glare conditions. The X7-Rugged seamlessly adapts to land, sea, or airborne missions, delivering consistent performance and reliability wherever the mission leads.

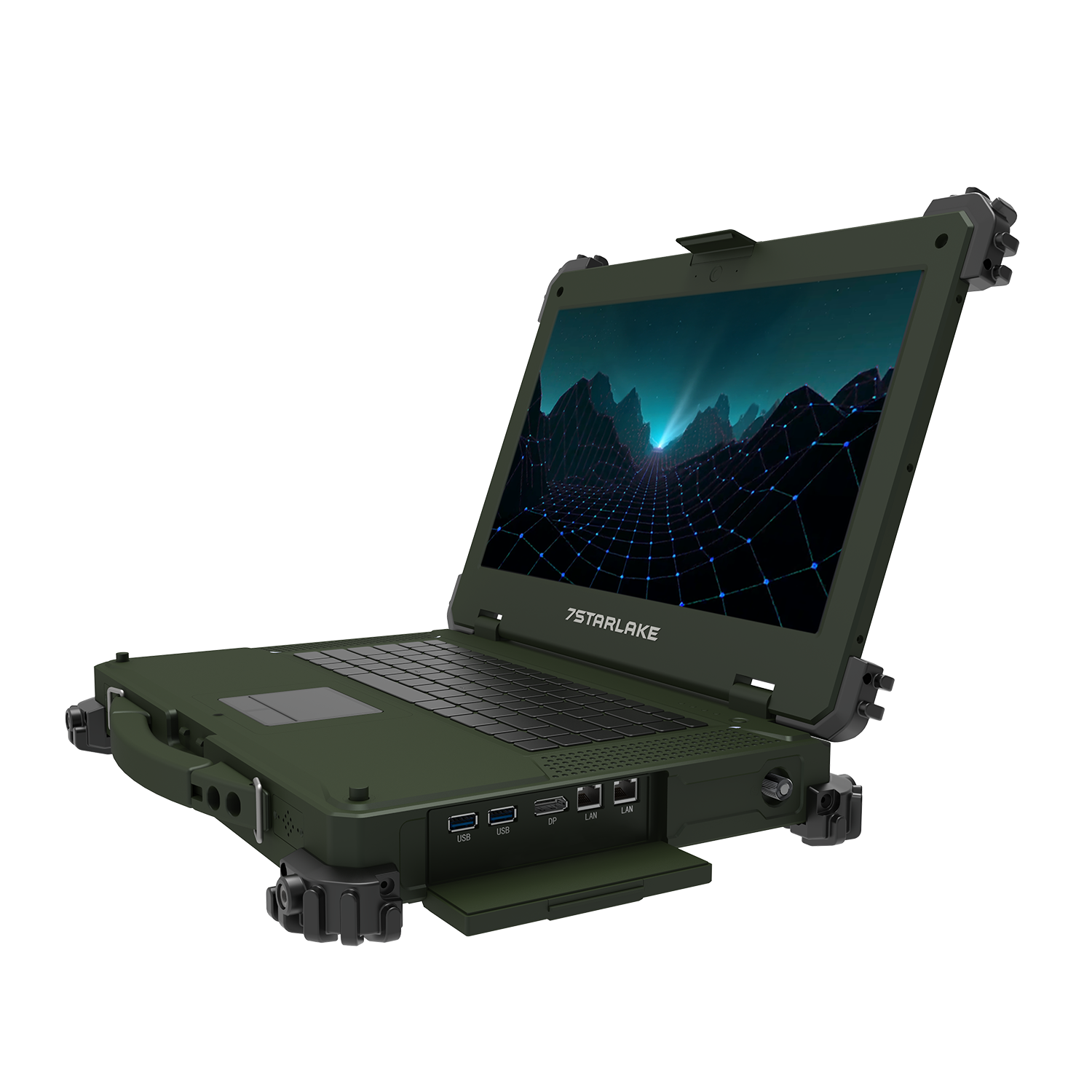

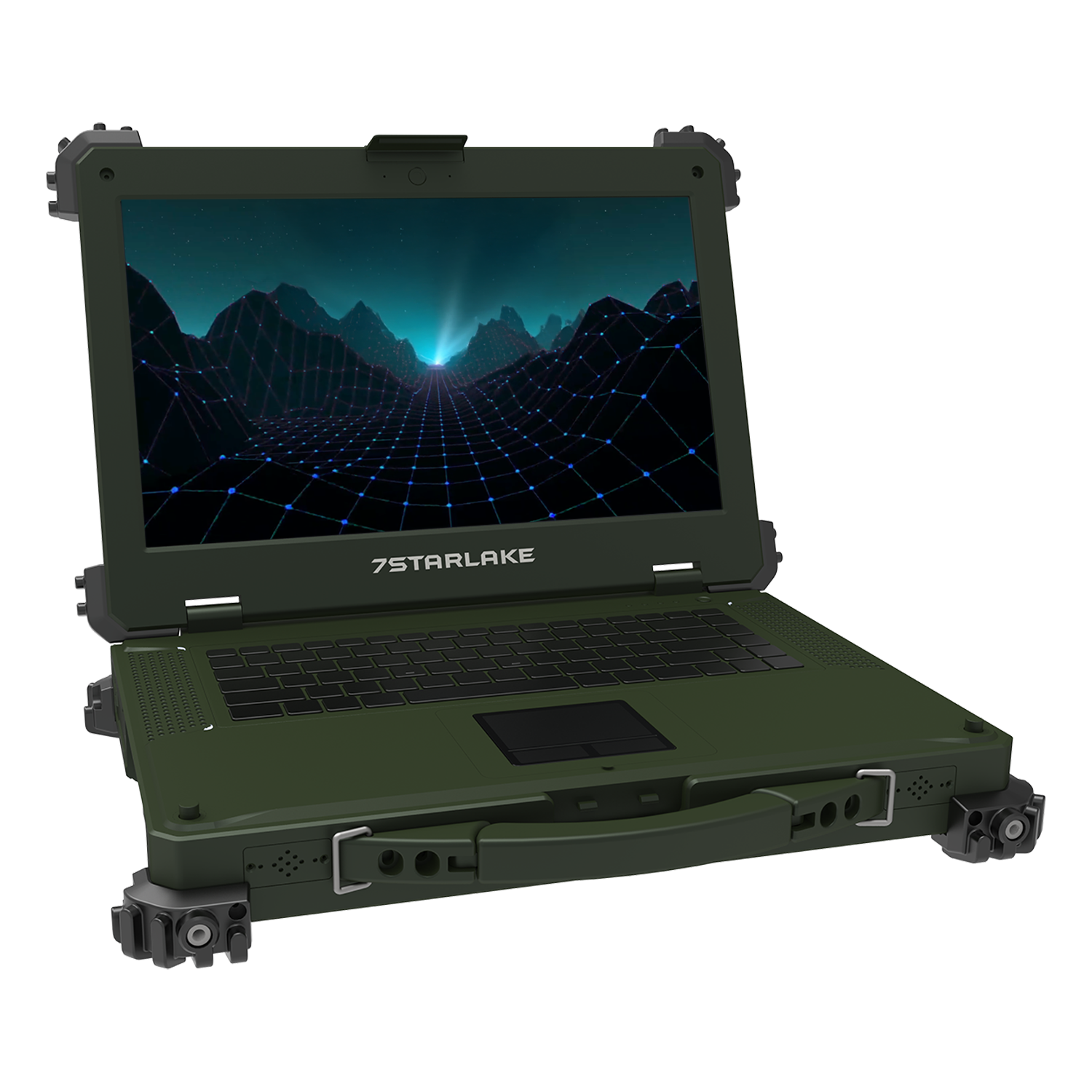

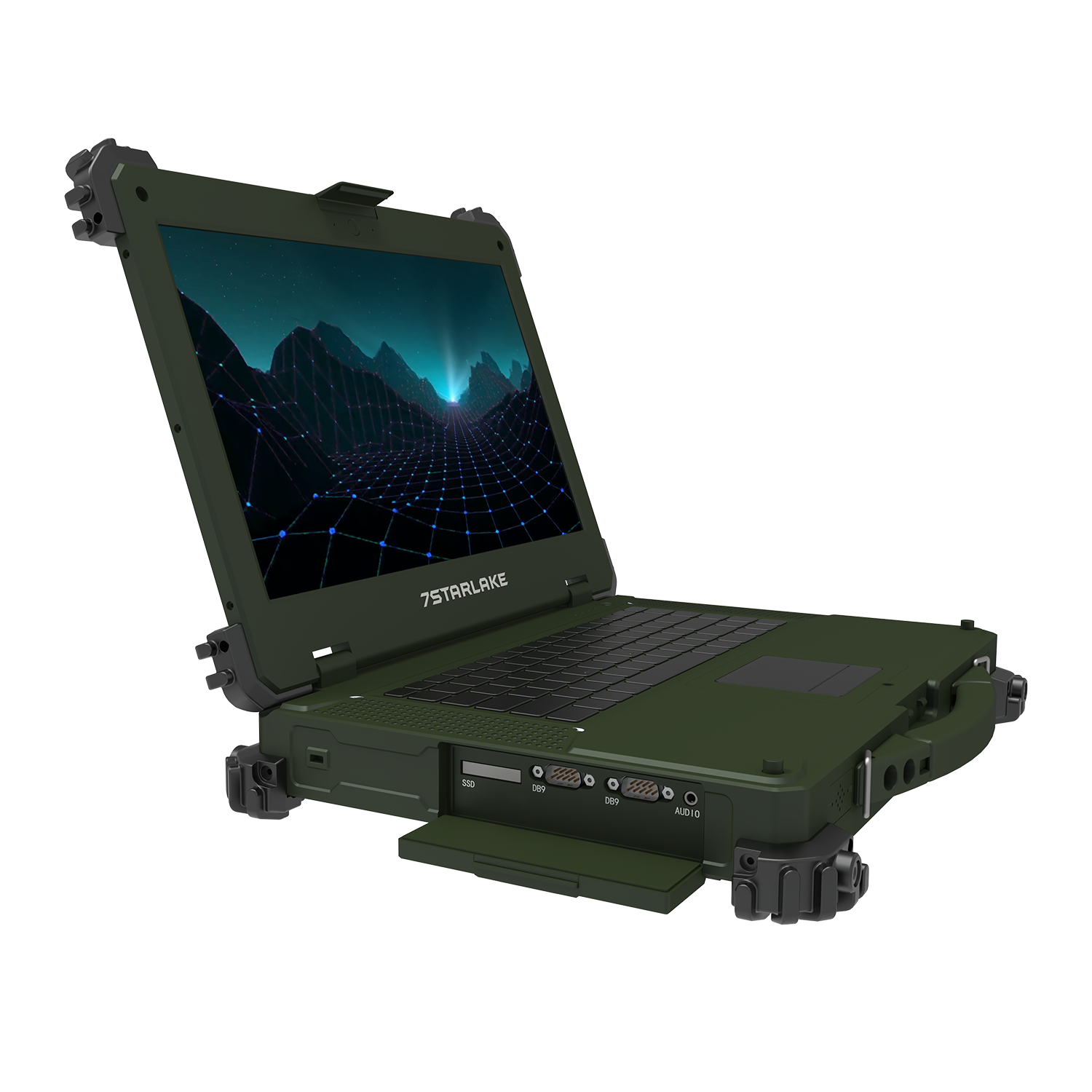

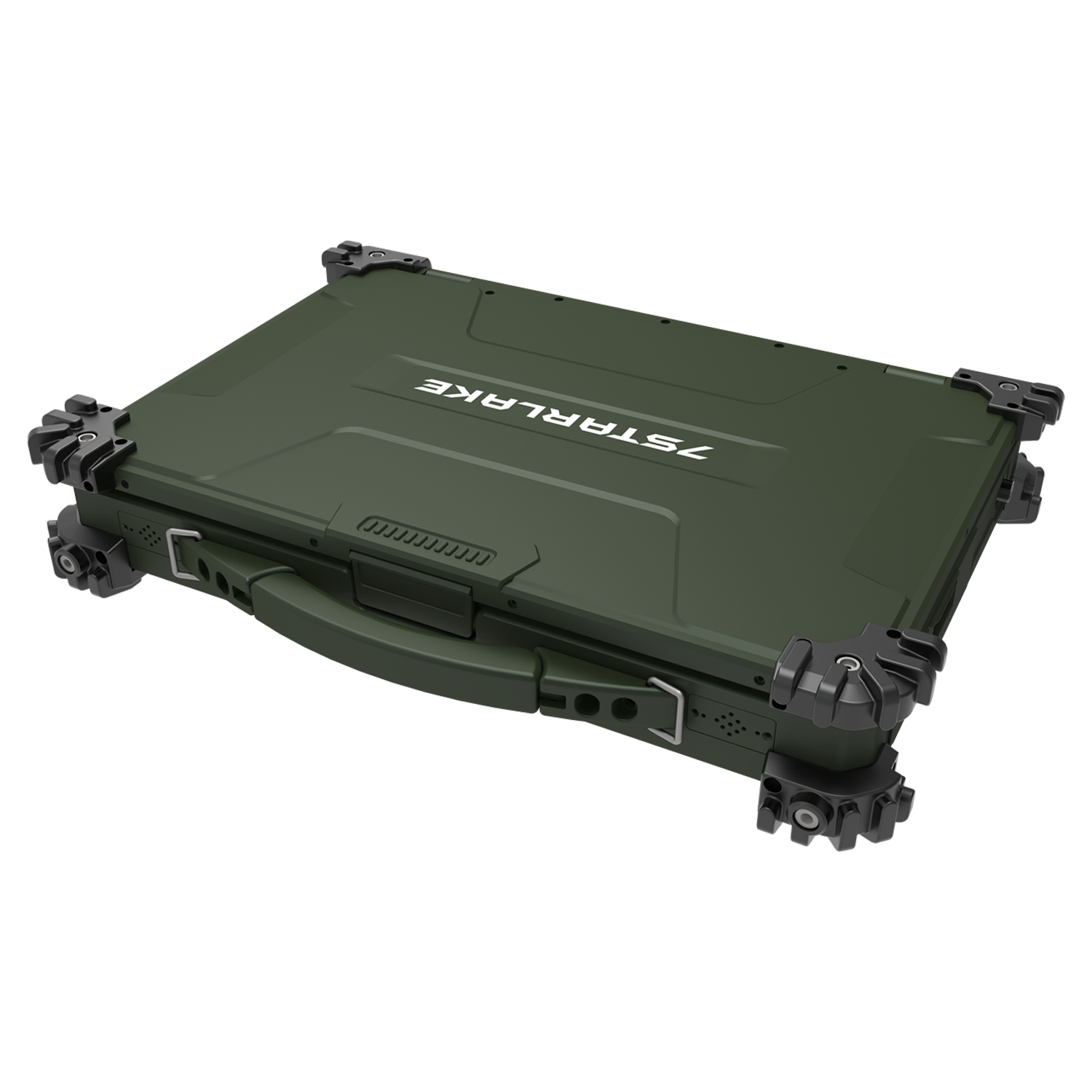

- Appearance
|
System |
|||||||
|---|---|---|---|---|---|---|---|
|
CPU |
Intel® i7-13800HRE, i5-13600HRE |
||||||
|
Memory |
2 x DDR5 8GBm up to 64GB |
||||||
|
GPU |
NVIDIA® RTX A1000/ 1050Ti |
||||||
|
Display |
|||||||
|
Display |
15.6" TFT LCD FHD (1920 x 1080), 350/1,000 nits brightness display Sunlight readable P-capacitive multi touch screen or non-touch |
||||||
|
Operating System |
|||||||
|
OS Support |
Windows 10 pro (optional) Windows 11 Pro (optional) |
||||||
|
Storage |
|||||||
|
Storage |
2 x NVMe M.2 storage |
||||||
|
Ethernet |
|||||||
| Ethernet | 2 x RJ45 2.5 Gigabit | ||||||
|
Power |
|||||||
|
Power |
230W 100-240VAC, 50/60Hz |
||||||
|
Dimensions |
|||||||
|
Dimensions |
395 x 375 x 60 mm (15.55 x 14.76 x 2.36 inch) |
||||||
|

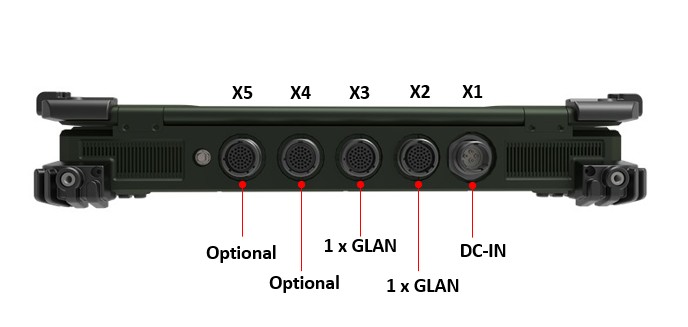

Back I/O (Rugged Connector DTL38999) |
|||||||
|
X1 |
19V DC-IN |
||||||
| X2 | 1 x GLAN port | ||||||
| X3 | 1 x GLAN port | ||||||
|

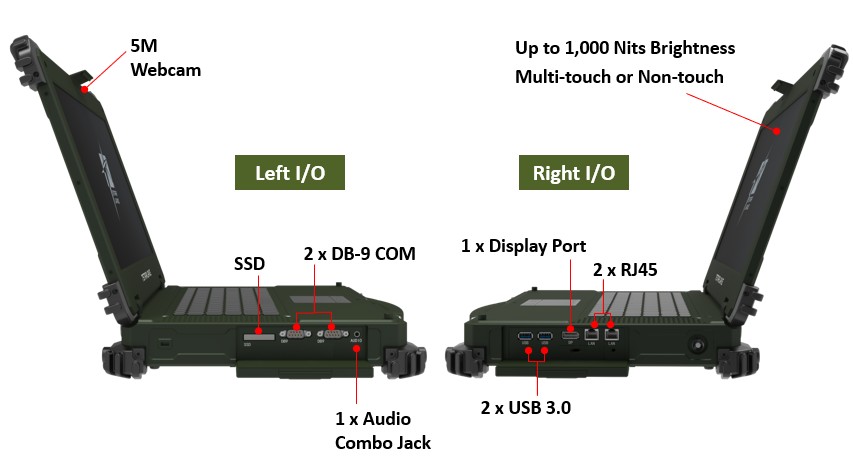

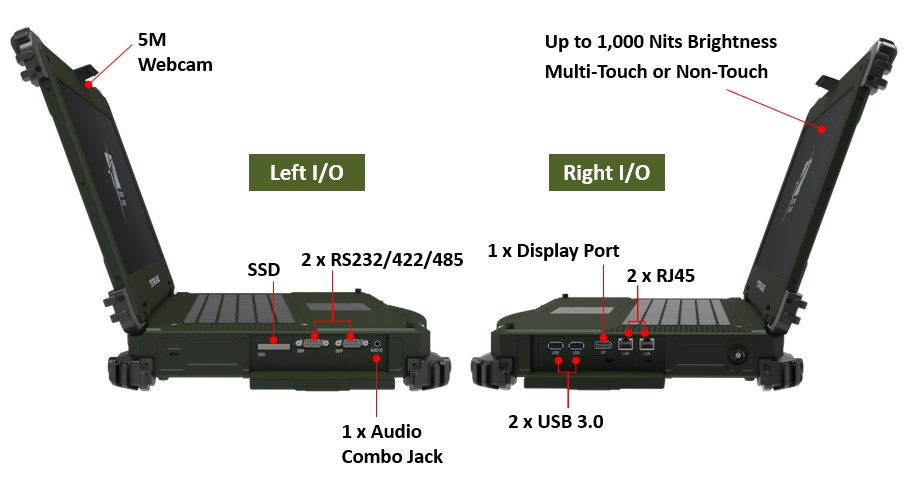

Left I/O |
|||||||
|
Left I/O |
2 x RS232/ 422/ 485 1 x Audio Combo Jack |
||||||
|
RIGHT I/O |
|||||||
|
Right I/O |
2 x USB 3.0, 1 x DP, 2 x RJ45 |
||||||
|
Camera |
|||||||
|
Camera |
1 x 5M webcam |
||||||
|
Wireless |
|||||||
|
Wi-Fi |
Intel® Wi-Fi 6E AX210 WLAN 802.11 a/b/g/n/ac/ax |
||||||
|
Bluetooth |
Bluetooth 5.3 Ublox M9N GPS/GLONASS/BeiDou/ Galileo |
||||||
|
Keyboard |
|||||||
|
Keyboard |
83-key with backlight, resistive |
||||||
|
Rugged Feature |
|||||||
|
Rugged Feature |
IP65, Aluminum-magnesium alloy case, black or green color |
||||||
|
Environment |
|||||||
|
Operating Temp |
-20°C to +55°C |
||||||
|
Storage Temp |
-40°C to +71°C |
||||||
|
Accessories |
|||||||
|
Accessories |
AC adapter: 230W 100-240VAC, 50/60Hz MIL-STD-461 AC adapter (230W, 100-240VAC; optional) |
||||||
|
MIL-STD-810 Environment Testing Standards |
|||||||
|
Method 501, Operational Temperature, high |
Procedure II: +60°C, two-hour dwell, four cycles |
||||||
|
Method 501, Storage Temperature, high |
Procedure I: +75°C, two-hour dwell, four cycles |
||||||
|
Method 502, Operational Temperature, low |
Procedure II: -40°C, two-hour dwell, four cycles |
||||||
|
Method 502, Storage Temperature, low |
Procedure I: -40°C, two-hour dwell, four cycles |
||||||
|
Method 514, Vibration |
Category 24/Non-Operating (Category 20 & 24, Vibration) |
||||||
|
Method 514, Vibration |
Category 20/Operating (Category 20 & 24, Vibration) |
||||||
|
Method 516, Shock |
Procedure V Non-Operating (Mechanical Shock) |
||||||
|
Method 516, Shock |
Procedure I Operating (Mechanical Shock) |
||||||
|
Method 507, Humidity |
Procedure II: exposure to 10 cycles of 95% relative humidity at temperatures of 30 °C to 60 °C with conformal coating (optional) |
||||||
|
Method 500, Altitude (Low Pressure) |
15,000 feet transport, -200÷2500[m] ground operation and exposed to +55°C and -20°C operation (optional) |
||||||
|
Method 510, Sand-Dust |
Procedure I: Blasting dust, 12 hours (optional) |
||||||
|
MIL-STD-461 ELECTROMAGNETIC Testing Standards |
|||||||
|
CE102 |
Conducted emissions, power leads, 10KHz to 10MHz |
||||||
|
RE102 |
Radiated emissions, electric filed, 30MHz to 5GHz |
||||||
|
RS103 |
Radiated susceptibility, electric filed, 80Mhz to 3GHz |
||||||
