X7-Max
Sensor-To-Decision In One Unit. GPU Military Laptop
- Intel® 13th Gen Core™ i7/i5/i3 Processor
- NVIDIA Quadro A4500/ A2000/ A1000 GPU
- FHD 1000 Nits Sunlight Readable Multi-touch Screen or Non-touch
- Dual 10G Fiber Connectivity
- 2 x PoE Ports, Tactical Camera Support
- Swappable NVMe M.2 Storage
- IP65/MIL-STD-810/461 for Extreme Temperatures, Shock and Vibration
- Extended Temperature -20°C~+55°C
- Technical Profile
- Specifications

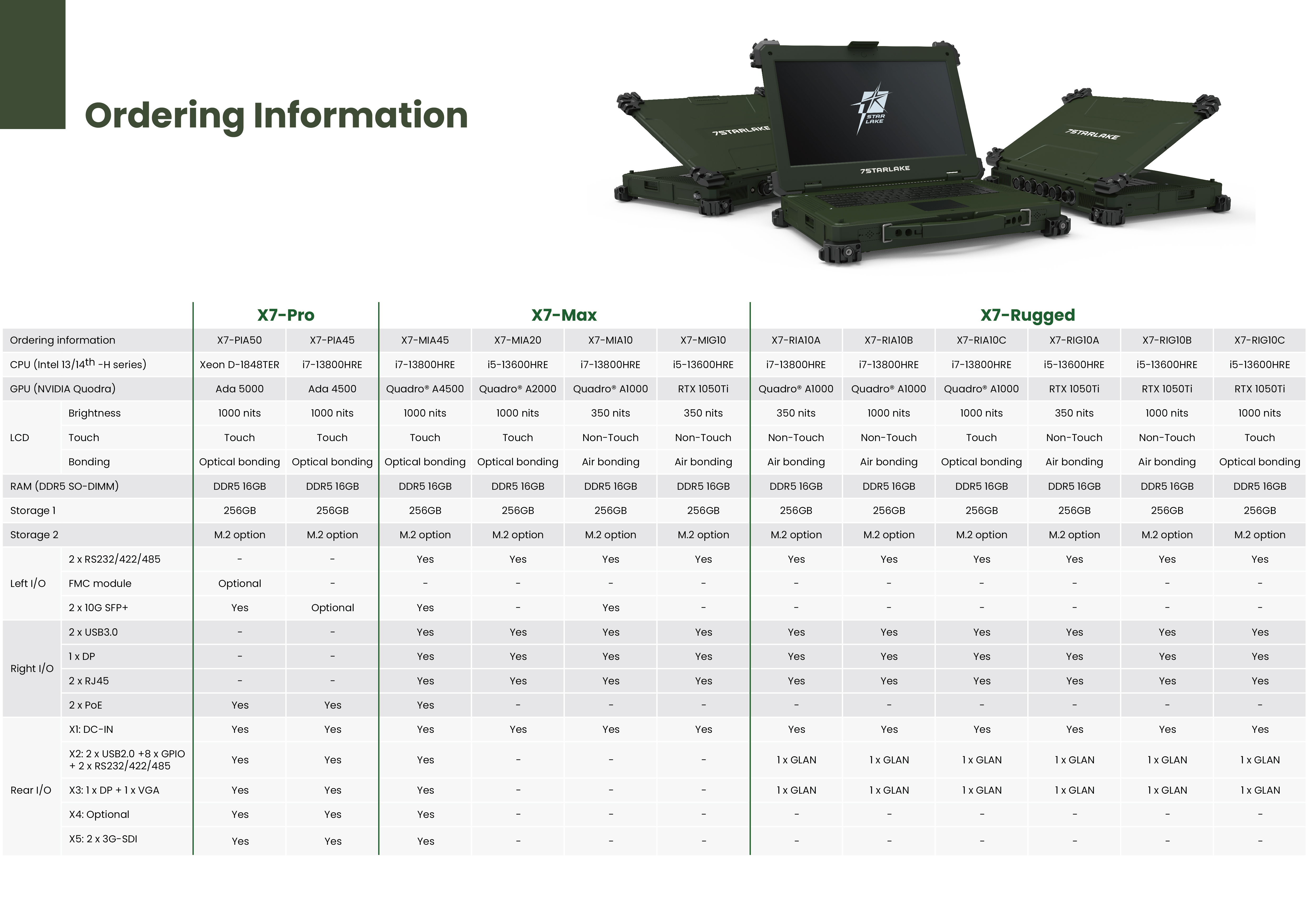

- Order Information
- Video
- Sensor-to-Decision in One Unit
-

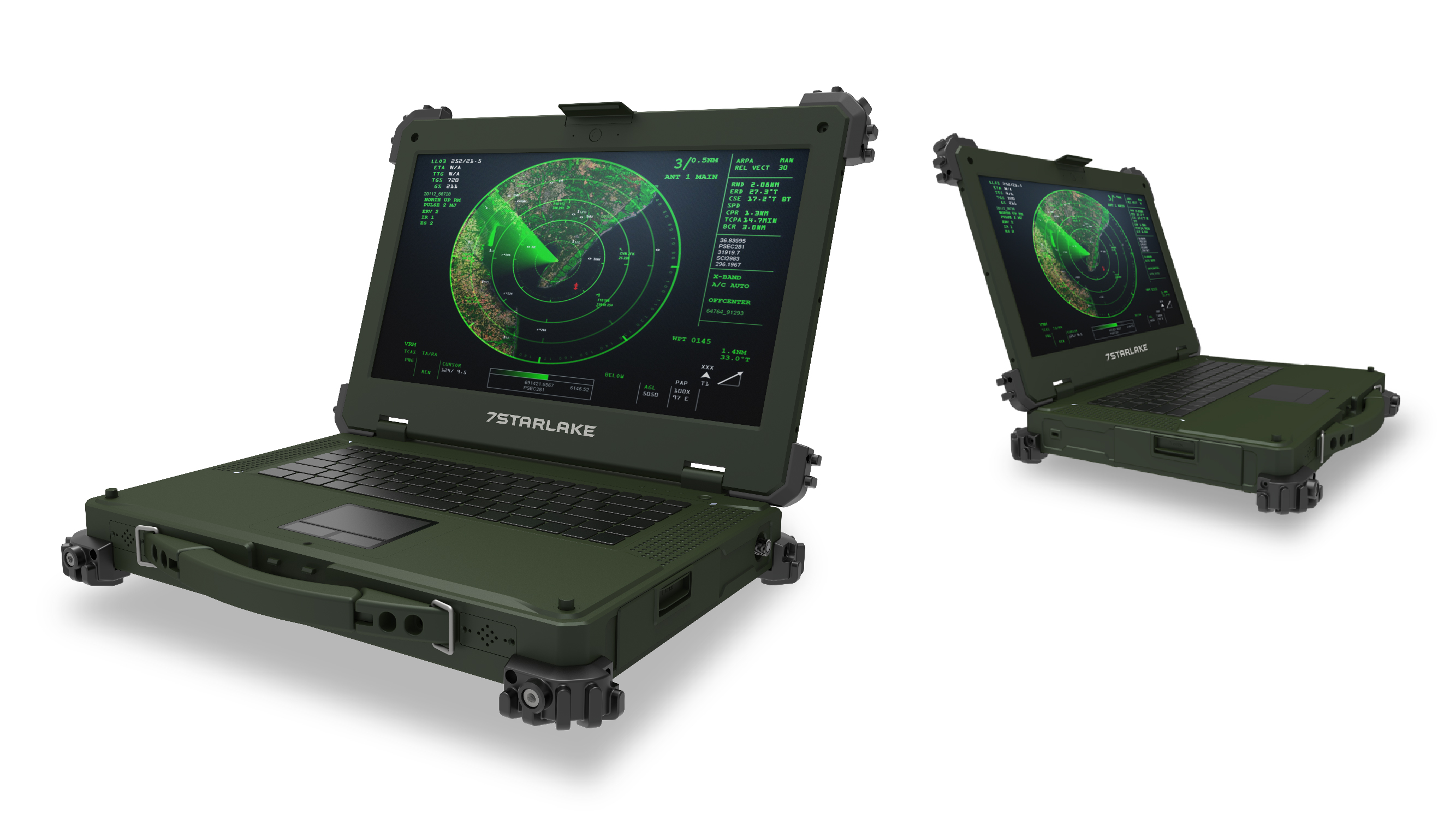

Designed for mission-critical operations, the 15.6" rugged Military Laptop X7-Max integrates CPU, GPU, 10G fiber and PoE connections into a single portable platform, enabling real-time sensor-to-decision capabilities for RF signal analysis, UAV ground control, and coastal radar systems.

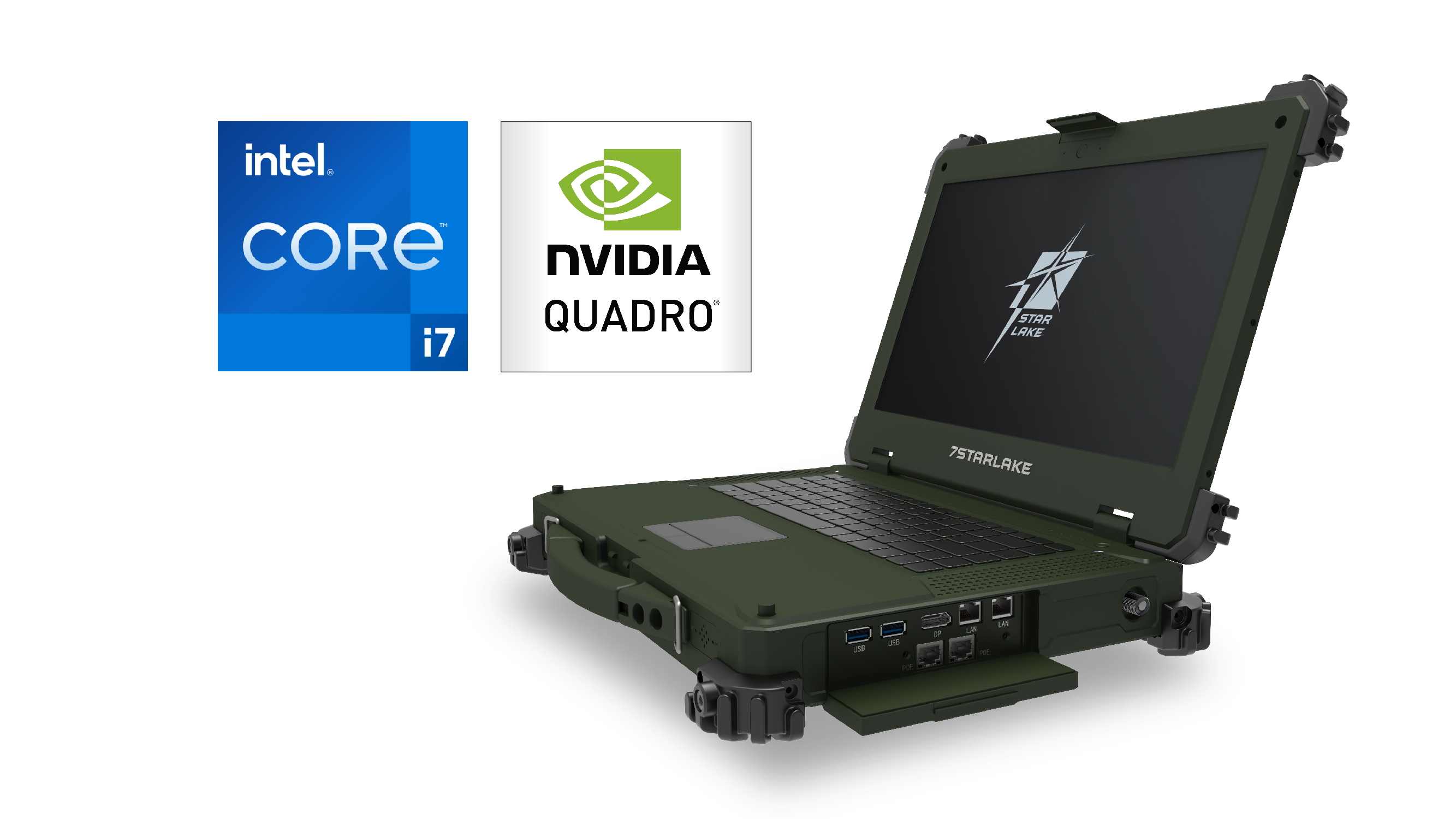

- GPU Acceleration for AI Sensor Fusion
-
Powered by Intel®13th Gen Core™ i7/i5/i3 processor, the Military Laptop X7-Max is purpose-built to deliver cutting-edge computing performance in the harshest environments, delivering server-grade power in a compact, energy-efficient SWaP-C form factor. Equipped with the NVIDIA Quadro A4500/A2000/A1000 GPU, the X7-Max provides next-gen AI acceleration, advanced visualization, and high-performance parallel computing to support real-time data analysis, mission planning, and situational awareness. This enables operators, field engineers, and defense professionals to process massive datasets, render complex 3D environments, and make faster, data-driven decisions on the edge without compromising mobility.
- 10G Fiber and Dual PoE for Real-time Intelligence
-
Engineered for mobility and rapid deployment, the X7-Max delivers high-bandwidth, low-latency communication through dual 10G fiber ports, ensuring seamless integration with external sensors. Dual PoE ports provide direct connectivity to tactical cameras, enabling continuous surveillance and live video analysis in the field. With PCIe 4.0 NVMe M.2 storage, the X7-Max offers exceptional data throughput, built-in redundancy, and secure, instant access to mission-critical information.

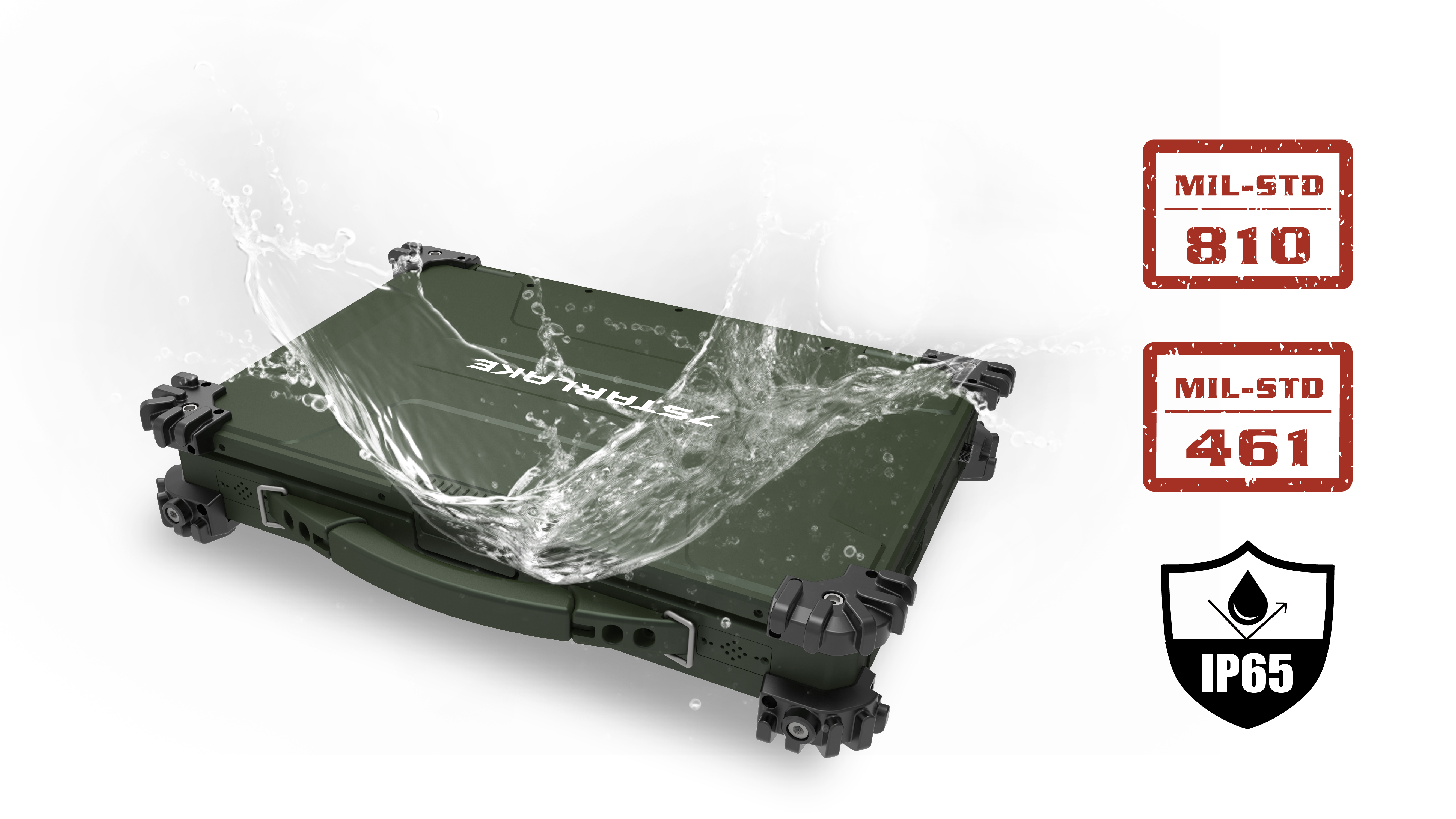

- MIL-STD-810/461 and IP65 Ruggedization
-
Built to meet MIL-STD-810 for environmental durability and MIL-STD-461 for electromagnetic interference control, the IP65-rated X7-Max withstands extreme temperatures, shock, vibration, and EMI in demanding operational environments. Its IP65-rated enclosure provides protection against dust, water, and other environmental hazards, while a sunlight-readable display ensures uncompromised visibility in outdoor and high-glare conditions. The X7-Max seamlessly adapts to land, sea, or airborne missions, delivering consistent performance and reliability wherever the mission leads.

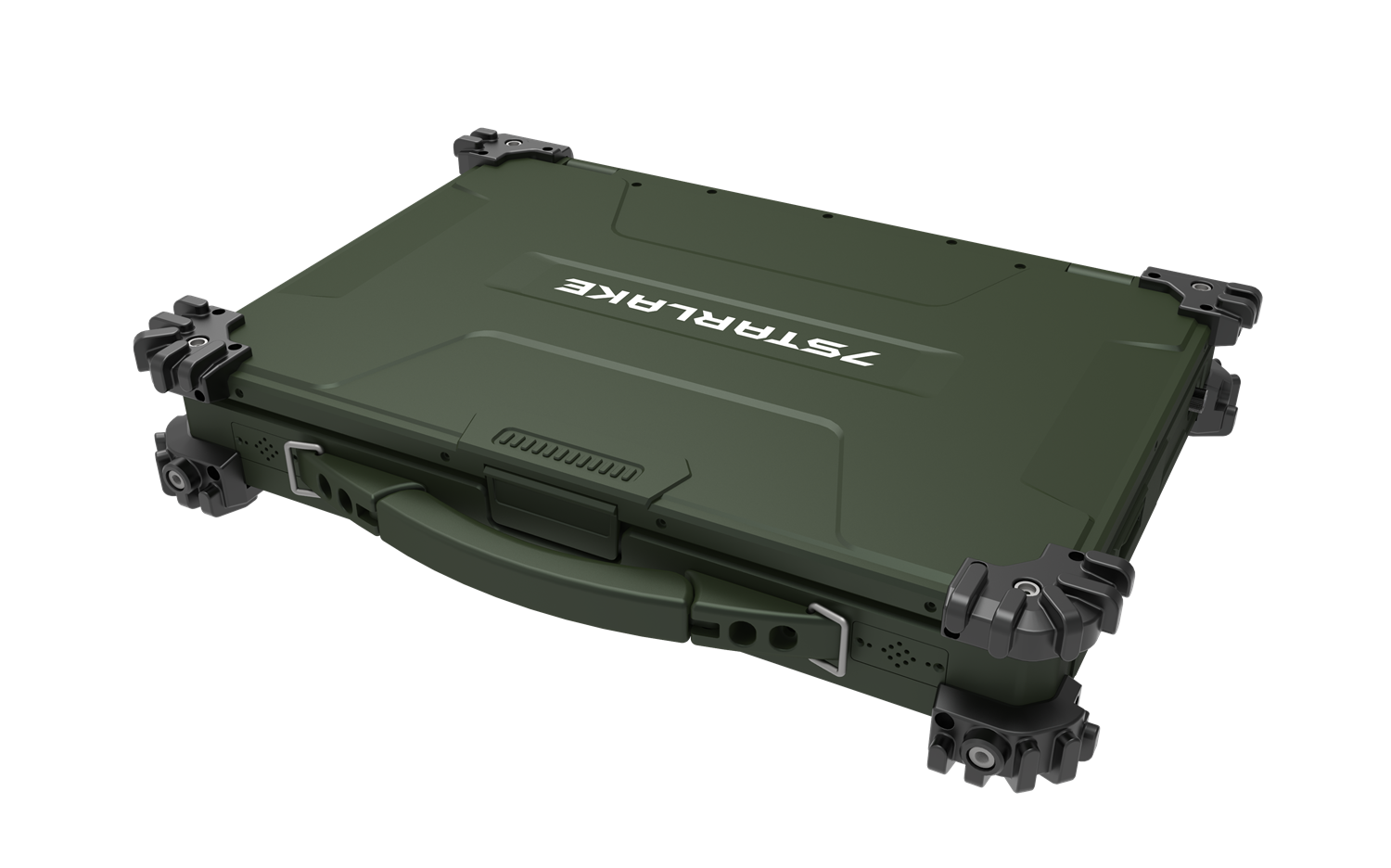

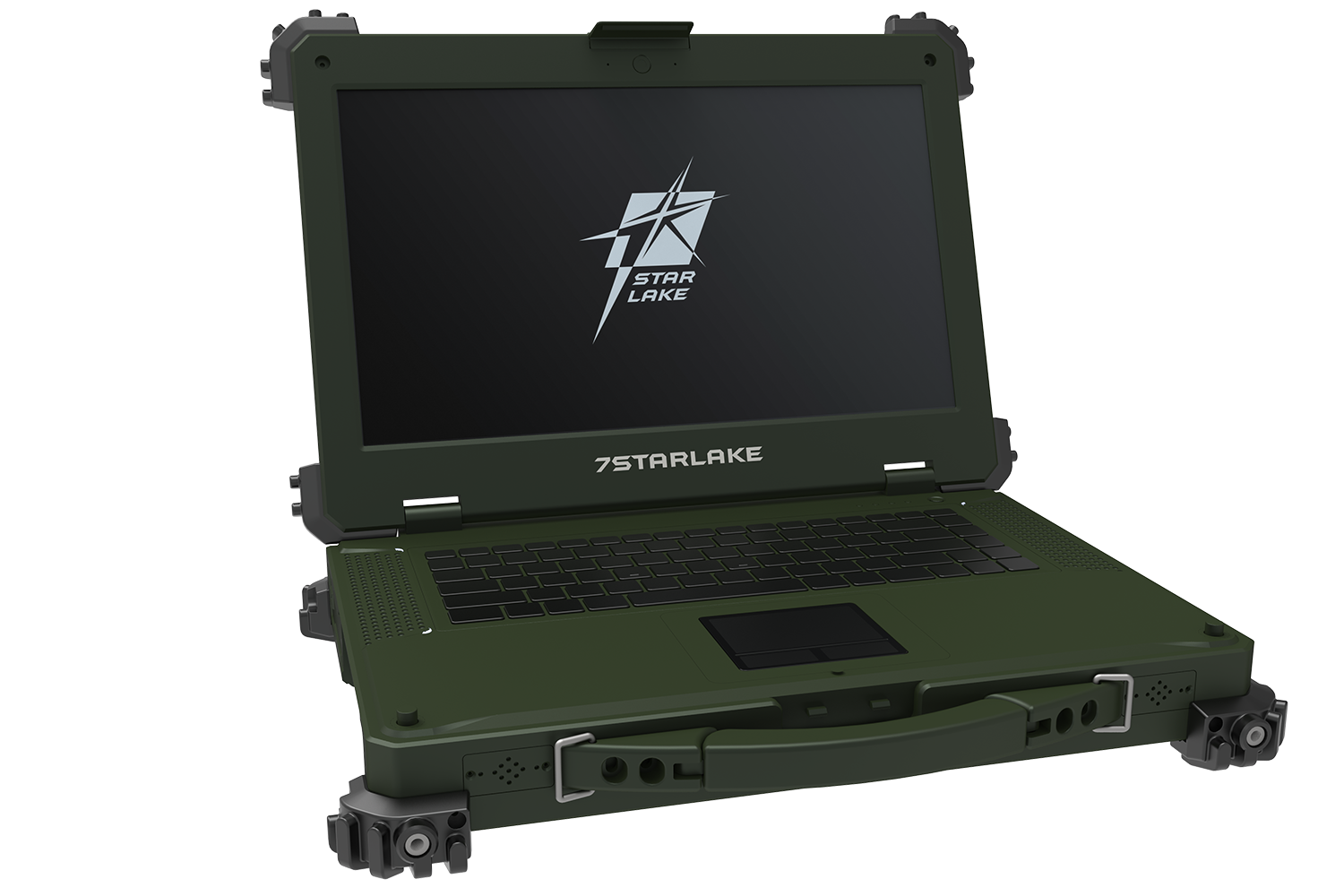

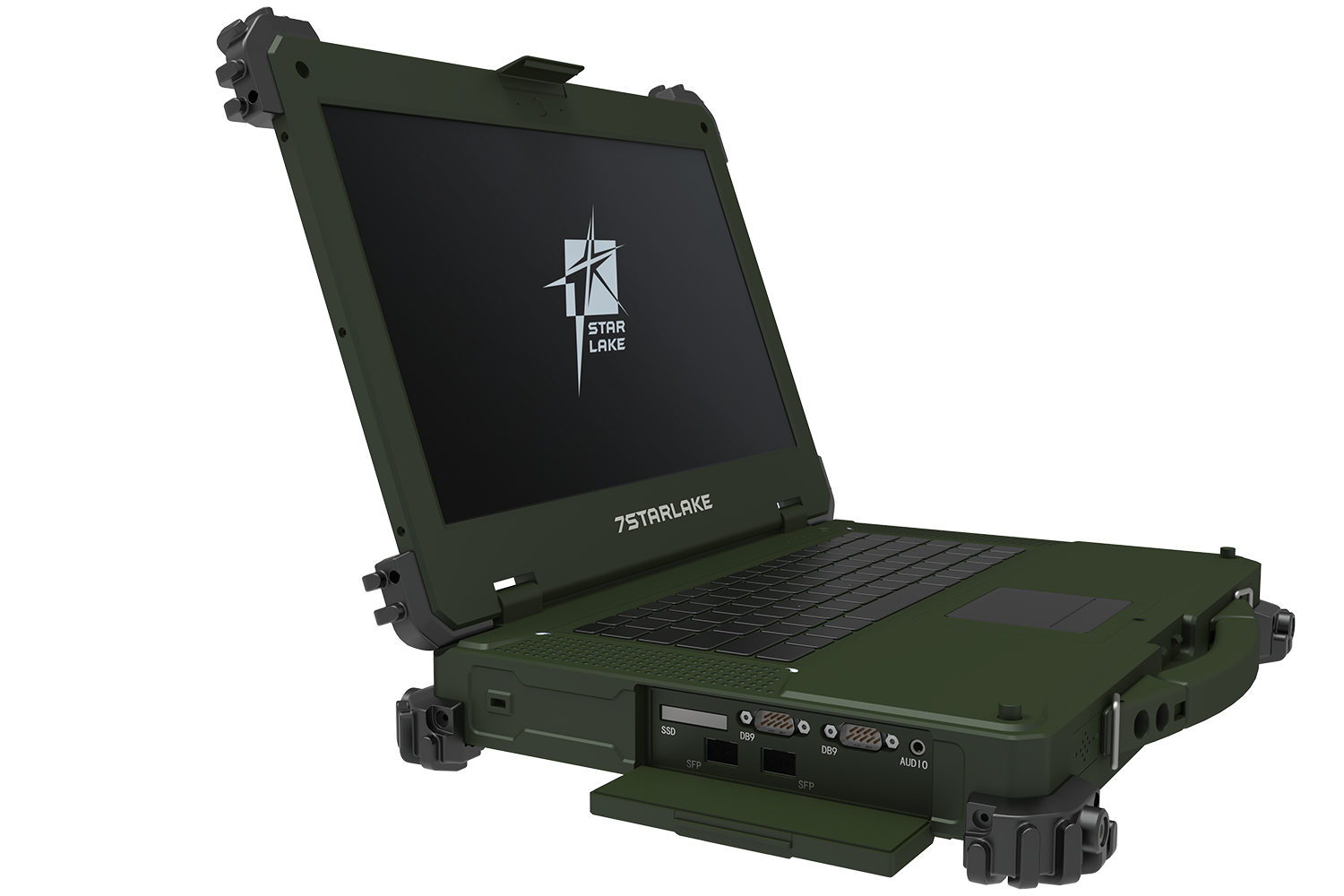

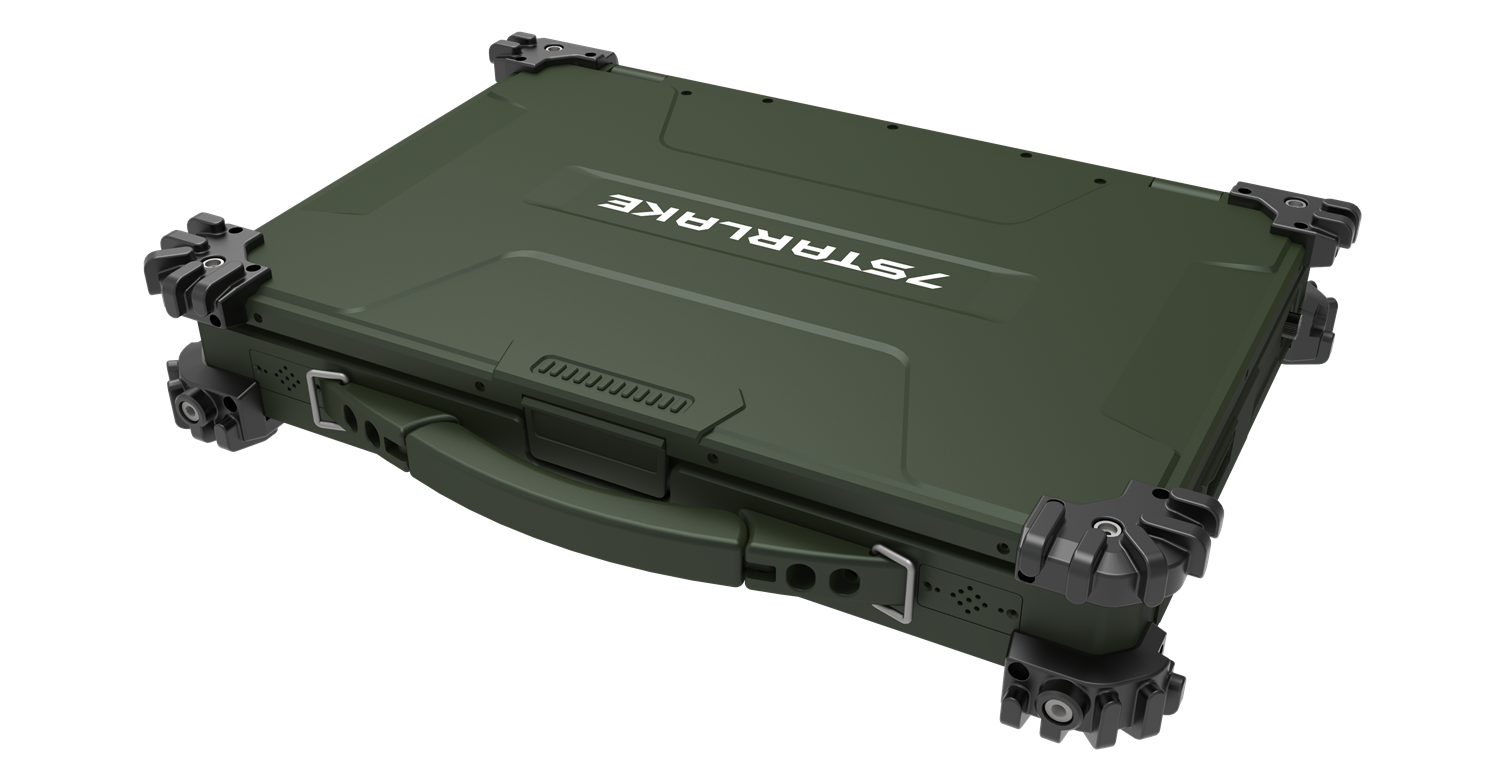

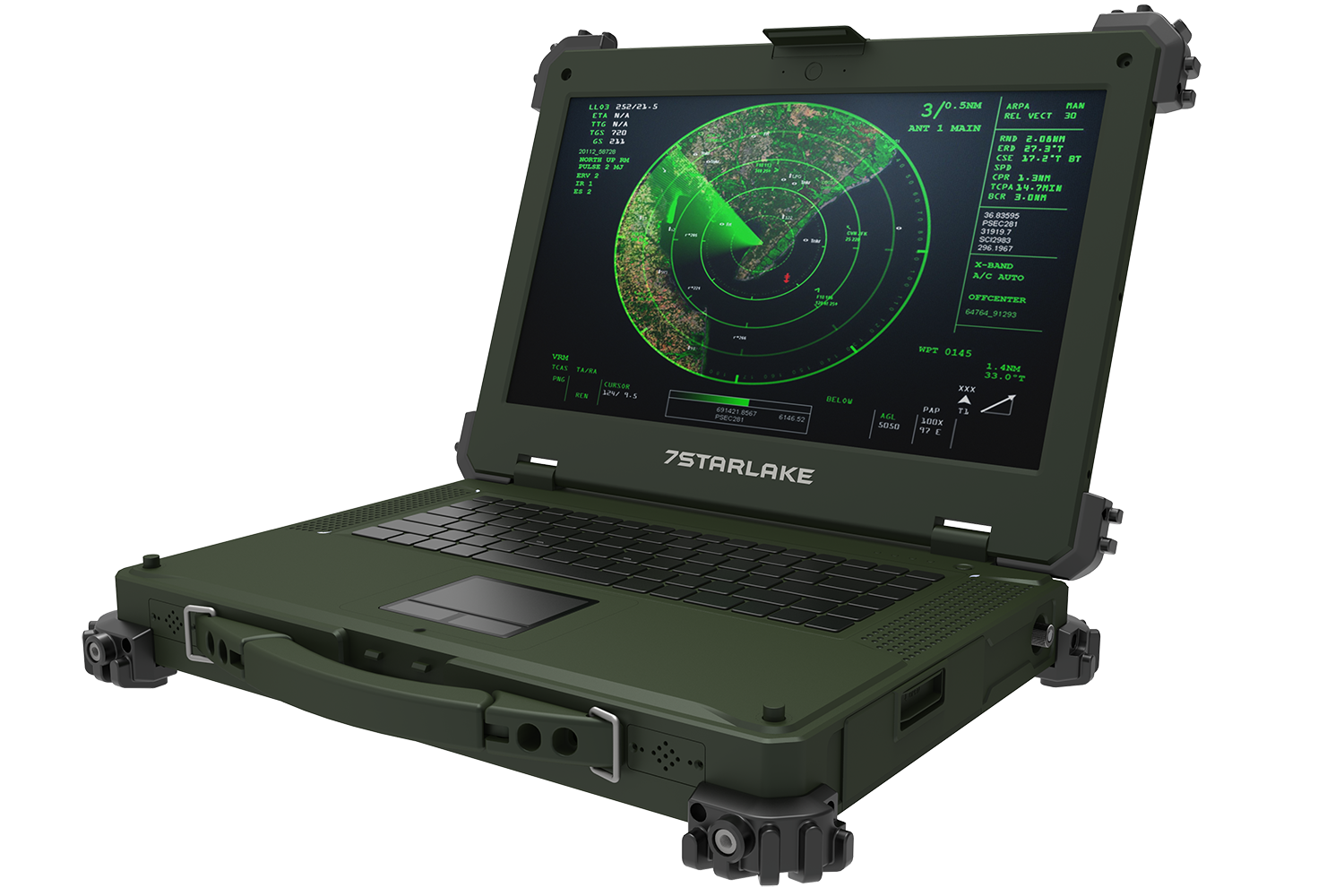

- Appearance
|
System |
|||||||
|---|---|---|---|---|---|---|---|
|
CPU |
Intel® i7-13800HRE, i5-13600HRE, i3-13300HRE |
||||||
|
Memory |
2 x DDR5 up to 64GB, 32GB or 16GB |
||||||
|
GPU |
NVIDIA® RTX A4500/ A2000/A1000 |
||||||
|
Display |
|||||||
|
Display |
15.6" TFT LCD FHD (1920 x 1080), 1,000 nits brightness display, sunlight readable Resistive multi touch screen or non-touch Optional: Capacitive multi-touch screen |
||||||
|
Operating System |
|||||||
|
OS Support |
Windows 10 pro (optional) Windows 11 Pro (optional) |
||||||
|
Storage |
|||||||
|
Storage |
2 x NVMe M.2 storage |
||||||
|
Ethernet |
|||||||
| Ethernet | 2 x RJ45 2.5 Gigabit | ||||||
|
Power |
|||||||
|
Power |
230W 100-240VAC, 50/60Hz |
||||||
|
Dimensions |
|||||||
|
Dimensions |
395 x 375 x 60 mm (15.55 x 14.76 x 2.36 inch) |
||||||
|
Back I/O (Rugged Connector DTL38999) |
|||||||
|
X1 |
19V DC-IN |
||||||
|

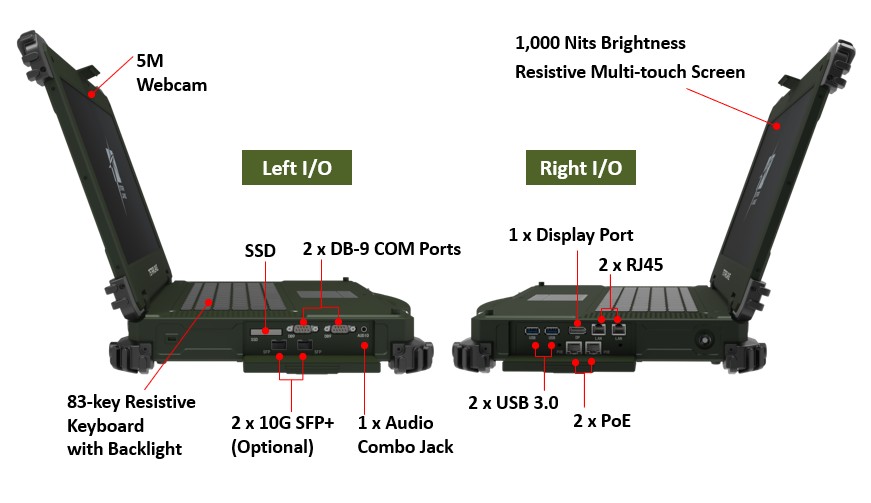

Left I/O |
|||||||
|
Left I/O |
2 x 10G SFP+ (M7 only) 2 x RS232/ 422/ 485 1 x Audio Combo Jack |
||||||
|
RIGHT I/O |
|||||||
|
Right I/O |
2 x PoE (M7 only), 2 x USB 3.0, 1 x DP, 2 x RJ45 |
||||||
|
Camera |
|||||||
|
Camera |
1 x 5M webcam |
||||||
|
Wireless |
|||||||
|
Wi-Fi |
Intel® Wi-Fi 6E AX210 WLAN 802.11 a/b/g/n/ac/ax |
||||||
|
Bluetooth |
Bluetooth 5.3 Ublox M9N GPS/GLONASS/BeiDou/ Galileo |
||||||
|
Keyboard |
|||||||
|
Keyboard |
83-key with backlight, resistive |
||||||
|
Rugged Feature |
|||||||
|
Rugged Feature |
Aluminum-magnesium alloy case, black or green color IP65 |
||||||
|
Environment |
|||||||
|
Operating Temp |
-20°C to +55°C |
||||||
|
Storage Temp |
-40°C to +71°C |
||||||
|
Accessories |
|||||||
|
Accessories |
AC adapter: 230W 100-240VAC, 50/60Hz MIL-STD-461 AC adapter (230W, 100-240VAC; optional) |
||||||
|
MIL-STD-810 Environment Testing Standards |
|||||||
|
Method 501, Operational Temperature, high |
Procedure II: +60°C, two-hour dwell, four cycles |
||||||
|
Method 501, Storage Temperature, high |
Procedure I: +75°C, two-hour dwell, four cycles |
||||||
|
Method 502, Operational Temperature, low |
Procedure II: -40°C, two-hour dwell, four cycles |
||||||
|
Method 502, Storage Temperature, low |
Procedure I: -40°C, two-hour dwell, four cycles |
||||||
|
Method 514, Vibration |
Category 24/Non-Operating (Category 20 & 24, Vibration) |
||||||
|
Method 514, Vibration |
Category 20/Operating (Category 20 & 24, Vibration) |
||||||
|
Method 516, Shock |
Procedure V Non-Operating (Mechanical Shock) |
||||||
|
Method 516, Shock |
Procedure I Operating (Mechanical Shock) |
||||||
|
Method 507, Humidity |
Procedure II: exposure to 10 cycles of 95% relative humidity at temperatures of 30 °C to 60 °C with conformal coating (optional) |
||||||
|
Method 500, Altitude (Low Pressure) |
15,000 feet transport, -200÷2500[m] ground operation and exposed to +55°C and -20°C operation (optional) |
||||||
|
Method 510, Sand-Dust |
Procedure I: Blasting dust, 12 hours (optional) |
||||||
|
MIL-STD-461 ELECTROMAGNETIC Testing Standards |
|||||||
|
CE102 |
Conducted emissions, power leads, 10KHz to 10MHz |
||||||
|
RE102 |
Radiated emissions, electric filed, 30MHz to 5GHz |
||||||
|
RS103 |
Radiated susceptibility, electric filed, 80Mhz to 3GHz |
||||||
