SKY24-P04

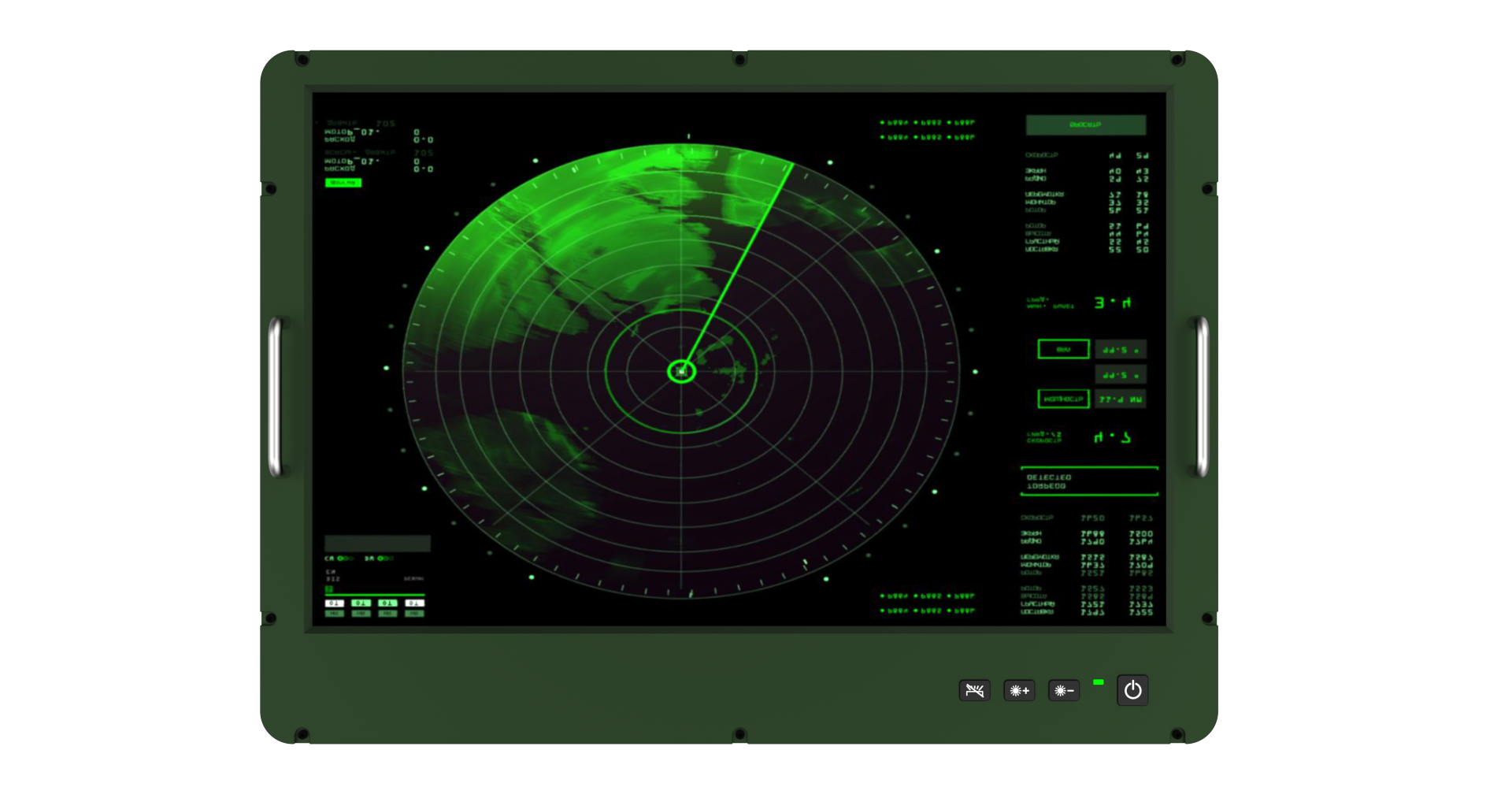

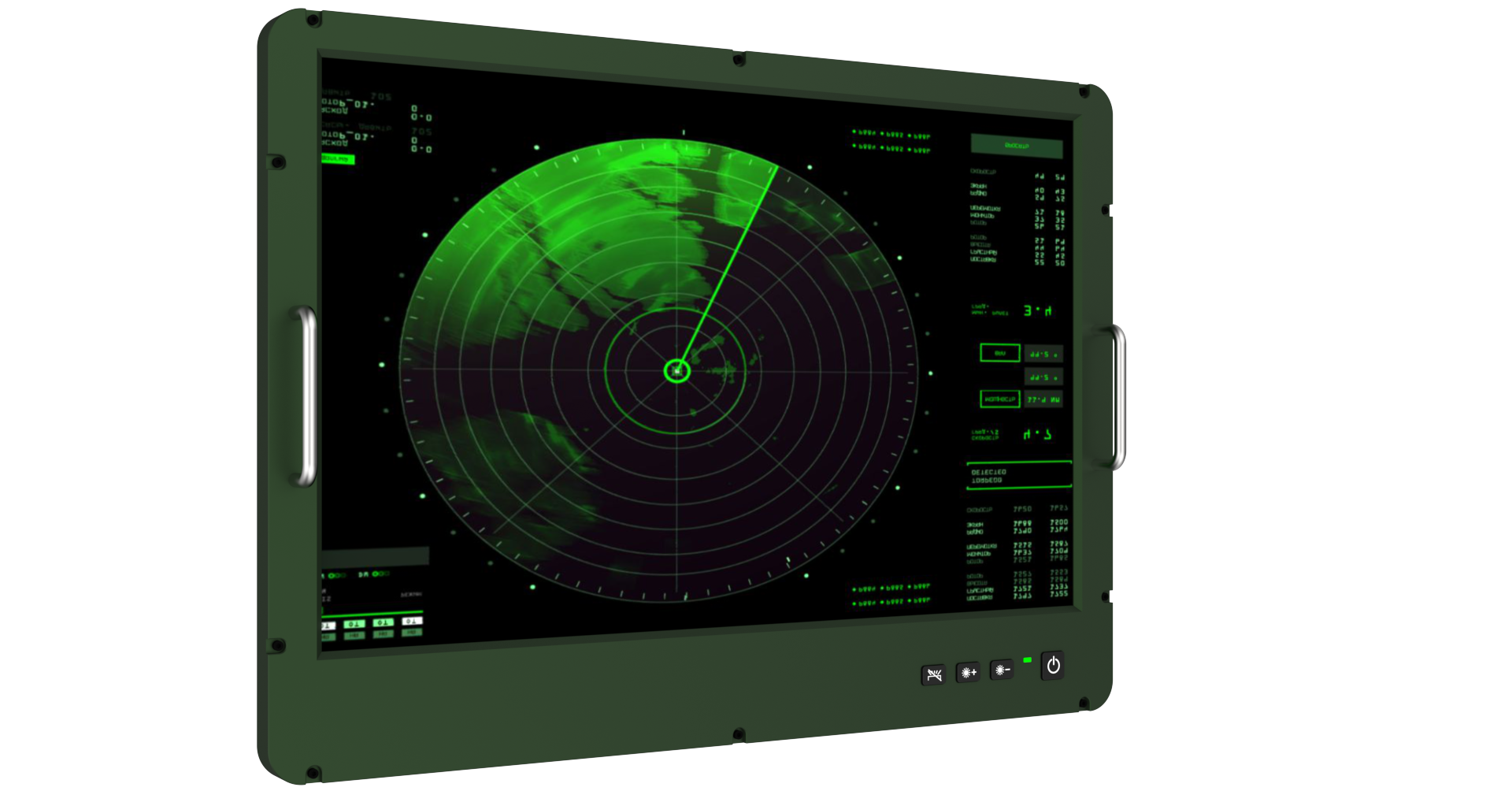

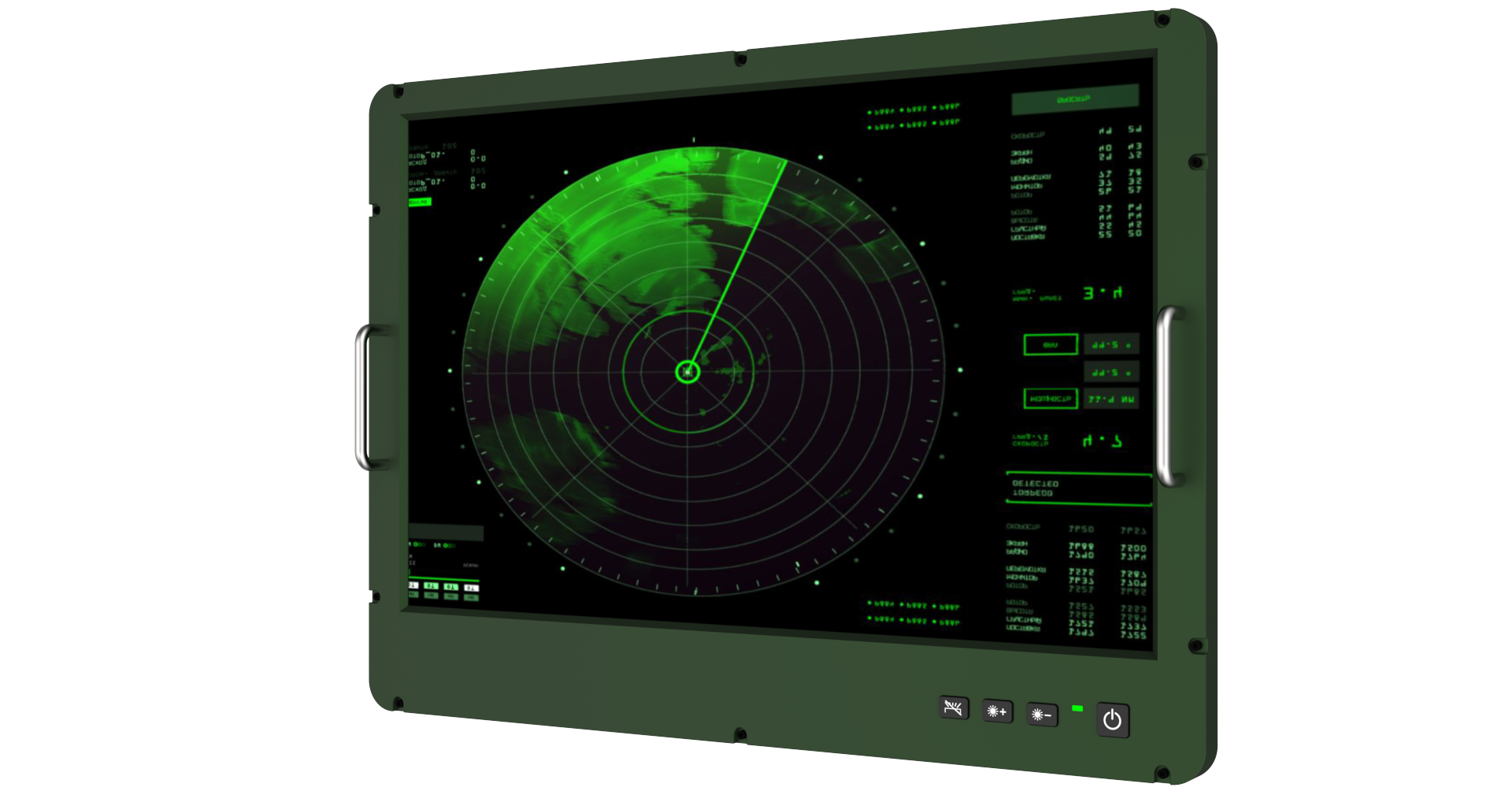

23.6“ Rugged IP65 Smart Display
- 23.6” TFT LCD; 2560 x 1600 4K Aspect Ratio 16:9
- Touchscreen (optional); Sunlight Readable up to 1000 Nits
- Heavy-duty Fully IP65 Rugged Aluminum
- Chassis with MIL-DTL-38999 Connectors
- MIL-STD-810 Vibration Method 514.6: ◎Acceleration: 5.0 Grms
- MIL-STD-810 Vibration Method 514.6: ◎PSD : 0.01257 g2/Hz
- MIL-STD-810 Shock Method 516.6: ◎Wave Form: Half Shine Wave
- MIL-STD-810 Shock Method 516.6: ◎Acceleration: 40G
- MIL-STD-461 EMI Filter (optional)
- Technical Profile
- Specifications
- Introduction
-
The SKY24-P04 rugged smart display delivers up to 1000 nits of brightness with night-vision readability below 1% nits, featuring optically bonded protective glass (GFG) and a multi-touch interface. Designed for shipboard command environments, it includes three soft-touch function keys and is built within an IP65-rated, all-aluminum enclosure to withstand salt fog, shock, and vibration. Supporting an extended operating temperature range of -40°C to 60°C, the SKY24-P04 provides reliable visual performance on the bridge, in the CIC (Combat Information Center), or in mission control spaces under harsh maritime conditions.
- Sunlight Readable Up to 1000 nits
-
The SKY24-P04 ruggedized display is sunlight-readable and performs reliably in high ambient light, including direct sunlight. Its advanced optical bonding enhances visibility by reducing reflection and improving clarity. Ideal for military operations, it ensures clear viewing in command-and-control vehicles, field deployments, mobile surveillance units, and shipboard environments, where bright sunlight and challenging conditions demand reliable performance.
- Key Features
-
(1) MIL-DTL-38999 Connectors
MIL-DTL-38999 connectors are high-performance cylindrical connectors engineered to withstand the extreme shock, vibration, and environmental exposure commonly encountered in defense and aerospace applications. Featuring removable crimp or fixed hermetic solder contacts, these connectors offer exceptional vibration resistance and reliable performance in harsh environments, including areas prone to severe wind, moisture and temperature fluctuations.
(2) G.F.G. Resistive Touch Screen
GFG touch screens are operable with fingers, pens and gloves. The glass surfaces makes the glass-film-glass sensor very durable and scratch resistant (7H).

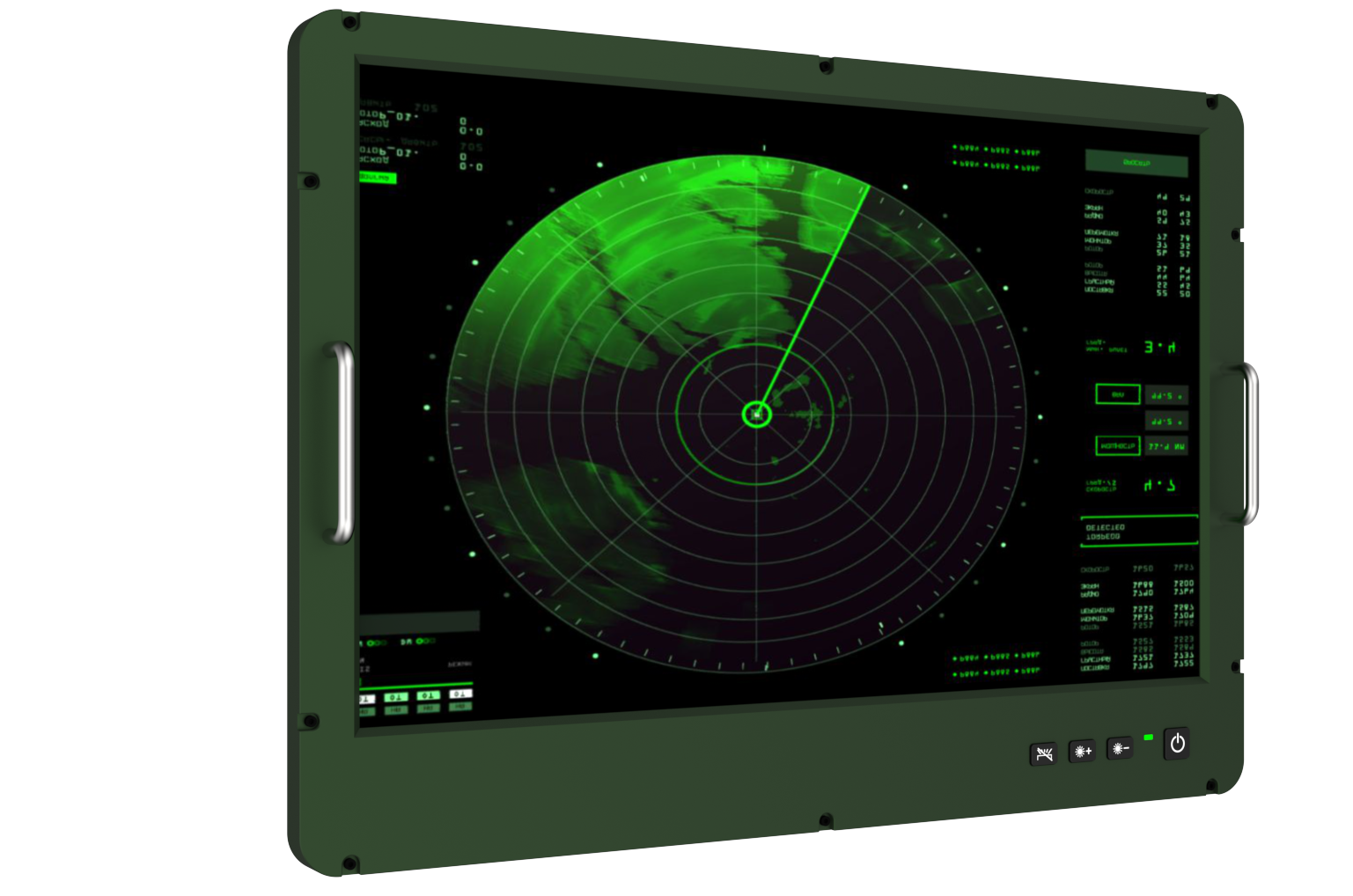

(3) Soft Touch Buttons
The SKY24-P04 is equipped with up to three function keys, including two OSD keys and one power button, all constructed using rubber tooling for enhanced durability. Each key is large enough to allow easy operation even when the user is wearing MOPP-level protective gloves.
(4) Night Vision Mode Support (optional)
In night mode, the operator can quickly adjust the display brightness using a hardware key. The system instantly dims the screen to below 1% brightness, or switches to a customized night-vision mode, ensuring the display is safe for use with night vision devices without delay.
(5) IP65 Certified
The SKY24-P04 offers complete resistance to dust and water, delivering a rugged and reliable solution for military, ground force, and defense applications.
(6)MIL-STD 810G Compliance
The SKY24-P04 complies with MIL-STD-810 standards for shock, vibration, and wide temperature ranges. It has been rigorously field-tested to meet or exceed MIL-STD-810 requirements for extreme temperatures, humidity, shock, and vibration, ensuring reliable performance in harsh environments.
(7) MIL-461EMI Filter (optional)
The smart display is designed to meet MIL-STD-461, providing protection against vehicle and aircraft voltage surges, spikes, transients, and electromagnetic interference. This capability ensures compliance with the strictest military requirements while delivering reliable performance in harsh environments.
- APPEARANCE
-
|
Display |
|
|---|---|
|
Resolution |
4K (2560 x 1600) |
|
Brightness |
Up to 1000 Nits |
|
Aspect Ratio |
16:9 |
|
Contrast Ratio |
>2000:1 |
|
Touch Panel |
23.6” Glass-Film-Glass Panel (Optional: Resistive Touch with EMI Mesh) |
|
Bonding |
Optical Bonding (optional) |
|
System |
|
|
Function key |
3 Function Keys (Power Button/ Brightness Up/ Brightness Down) |
|
DC-IN |
9V ~ 36V DC-IN, 28Vdc Optional: 12V~40V DC-IN (150W max) MIL-STD-461 |
|

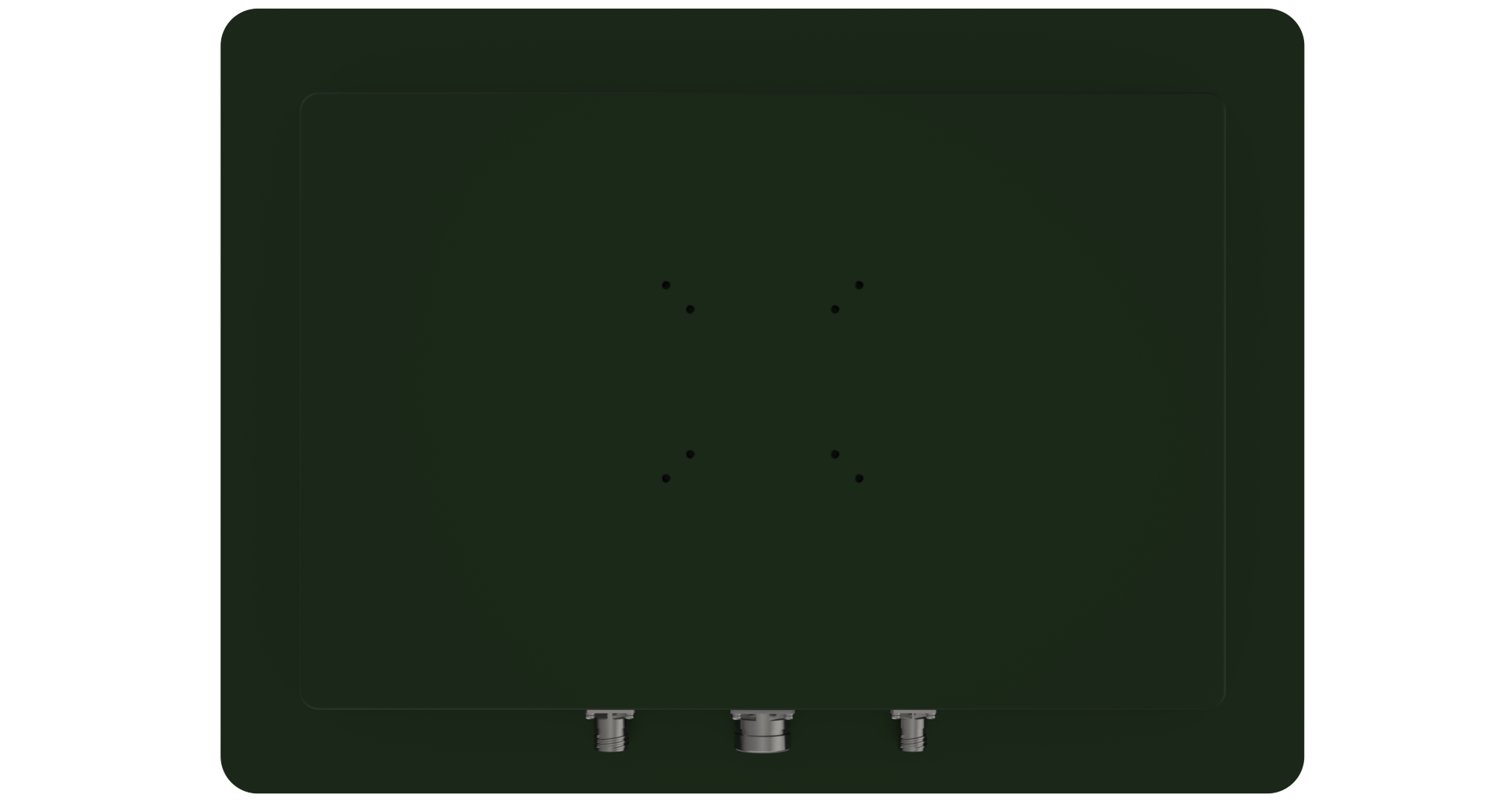

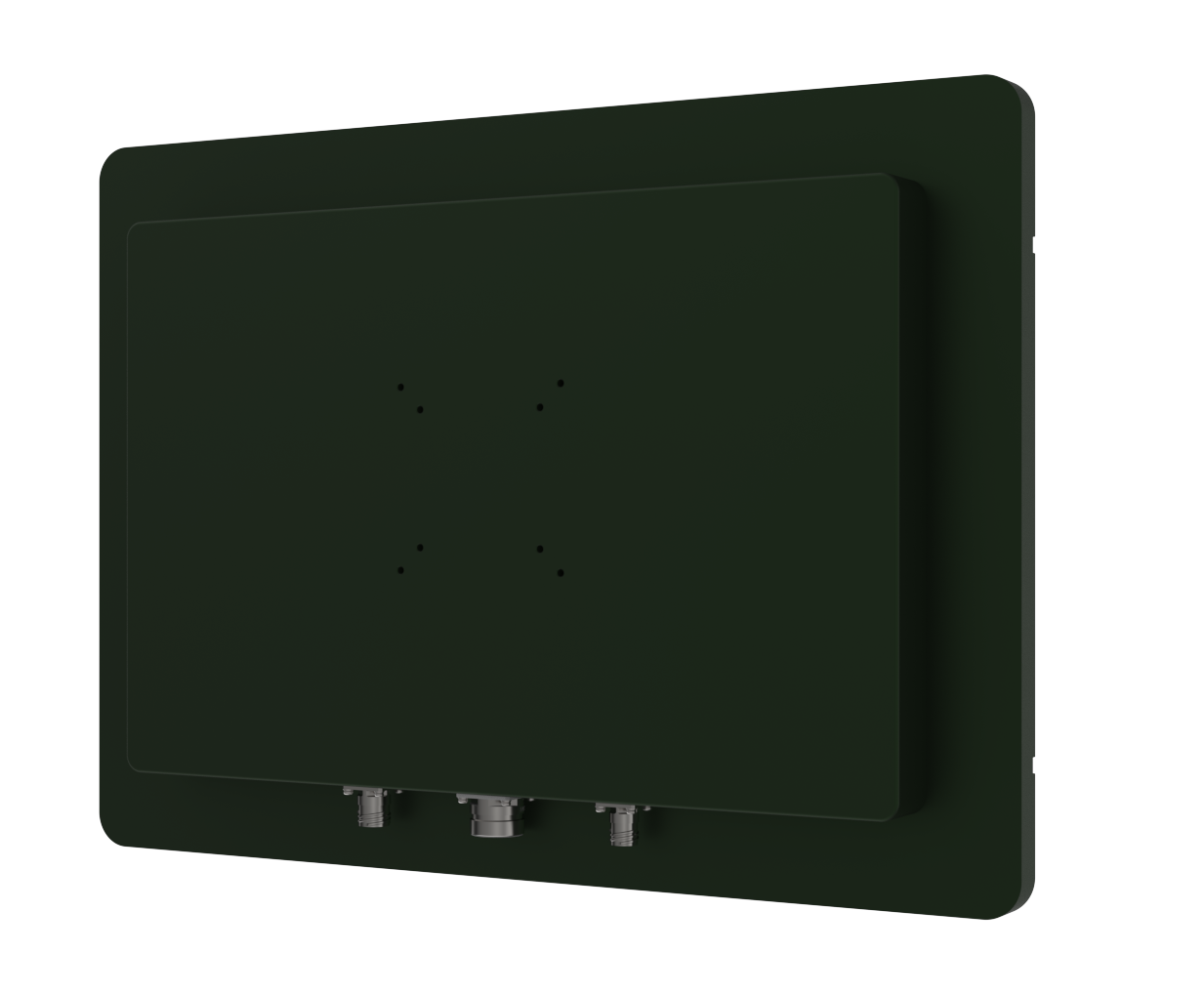

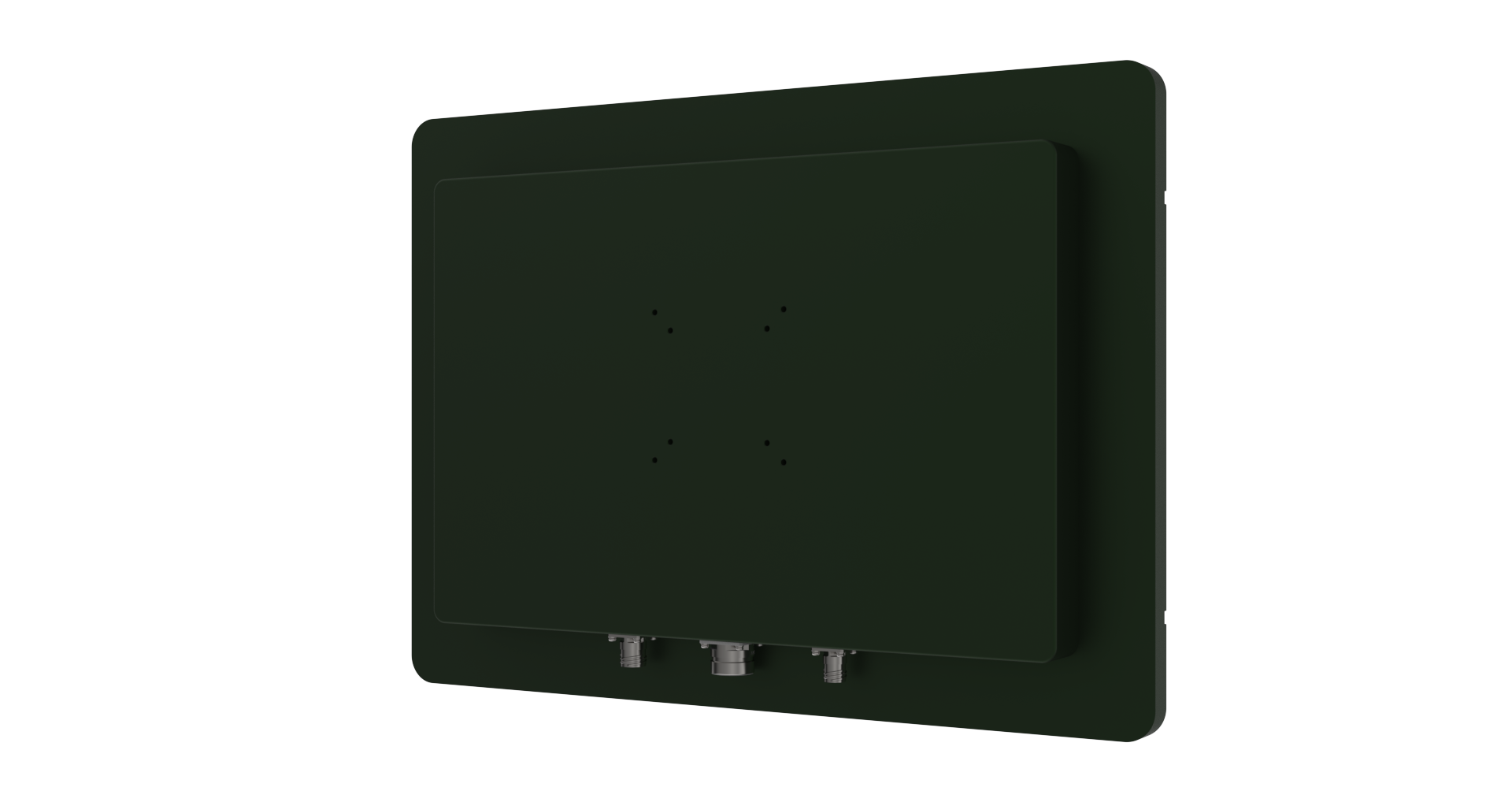

Connectors |
|
|
Rear I/O Port |
1x GND Screw [X1] 1 x DC-IN MIL-38999 [X2] 1 x HDMI/DP with MIL-38999 (optional) [X3] 1 x USB2.0 with MIL-38999 1 x Waterproof Valve (optional) |
|
Applications |
|
|
Applications |
Marine, Naval, Ground and Airborne Environment |
|

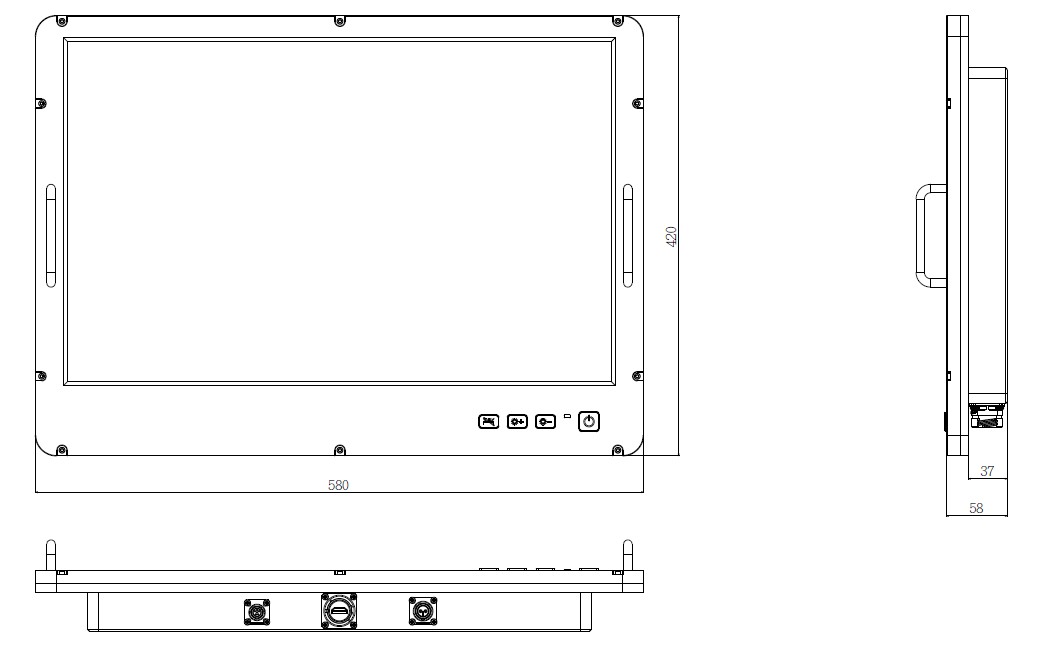

Physical |
|
|
Dimensions |
580 x 420 x 58 mm |
|
Chassis |
Aluminum Alloy, Corrosion Resistant |
|
Finish |
Anodic Aluminum Oxide |
|
Ingress Protection |
IP65 Dust /Waterproof |
|
MIL-STD-810 Environment Testing Standards |
|
|
Method 502.5 Procedure 2, Low Temp. |
Exposure (24h x 3 cycle) at -10℃ min. |
|
Method 501.5 Procedure 2, High Temp. |
60ºC for 2 hrs after temperature stabilization. |
|
Method 507.5 Procedure 2, Humidity |
RH -95%. Test Cycles: ten 24-hrs , functional test after 5th and 10th Cycles |
|
Method 514.6 Category 20, Vibration |
10 - 500Hz 1.04Grms Test Duration: 1 hr x 3 axis (total 3 hrs) |
|
Method 516.6 Procedure 1, Shock |
10G, 11mSec, 3 per axis |
|
MIL-STD-810 (Non-Operating Tests) |
|
|
Method 502.5, Low Temp. |
Exposure (24h x 7 Cycle) at -20℃ min. |
|
Method 501.5 Procedure 1, High Temp. |
71ºC for 2 hrs after temperature stabilization. |
|
Method 514.6 Category 24, Vibration |
200 to 2000Hz Test Duration: 1hr per axis; rms = 2.24 gs |
|
Method 516.6 Procedure 1, Shock |
20G, 11mSec, 3 per axis |
|
MIL-STD-461 Environment Testing Standards (optional) |
|
|
CE102 |
Basic curve, 10kHz - 30 MHz |
|
RE102-4 |
(1.5 MHz) -30 MHz - 5 GHz |
|
RS103 |
1.5MHz -5GHz, 50V/m equal for all frequencies EN 61000-4-2: Air Discharge: 8 kV, |
|
Environmental Qualifications |
|
|
Operation Temp. |
-20°C~+60°C -40°C ~+60 °C (with heater system inside; optional) |
|
Extended Temp. (optional) |
-40°C ~+80°C |
|
Green Product |
RoHS, WEEE Compliance
|
