LINK200M
Military IP65 PoE Switch
- Military 8 Ports IP65 PoE Switch
- 8 ports PoE 802.3 at (30W) Support
- Full Gigabit Switching and Ultra-High Throughput
- Various configuration paths, including WebGUI, CLI, SNMP
- Layer 2 management features include VLAN, QoS, IGMP Snooping, LACP/Trunk
- Enhanced Rapid Spanning Tree (RSTP) for Redundancy
- Traffic management: Port classification, Port policing, Port scheduler, Port Shaping, QoS control list, WRED, Port Security
- MIL-STD-810 Vibration Method 514.6: ◎Acceleration: 5.0 Grms
- MIL-STD-810 Vibration Method 514.6: ◎PSD: 0.01257 g2/Hz
- MIL-STD-810 Shock Method 516.6: ◎Wave Form: Half Shine Wave
- MIL-STD-810 Shock Method 516.6: ◎Acceleration: 20G
- Technical Profile
- Specifications
- Introduction
-
The LINK200M is a 2U half rugged, military-grade IP65 PoE switch engineered for mission-critical deployments in extreme environments. Equipped with 8 Gigabit 802.3at/af PoE+ ports, it delivers up to 120W of total PoE power and is ideal for powering IP cameras, sensors, and communication devices in field operations or mobile command units. With a wide 24VDC input range and built-in power booster, it seamlessly supports industrial and vehicle-mounted applications. Meeting the strict MIL-STD-810 standards, the LINK200M ensures durability against vibration and shock, making it suitable for defense, transportation, and heavy-duty field use.
Designed for secure and efficient networking, the LINK200M features advanced Layer 2 management including VLAN, QoS, IGMP Snooping, LACP/Trunking, and robust redundancy via Enhanced RSTP. It also supports comprehensive access control through 802.1X/RADIUS, IP Security, and Port Security. Configuration flexibility is provided through WebGUI, CLI, and SNMP interfaces. Whether in armored vehicles, field-deployed systems, or remote infrastructure nodes, this switch delivers dependable performance with military-grade resilience and network intelligence.

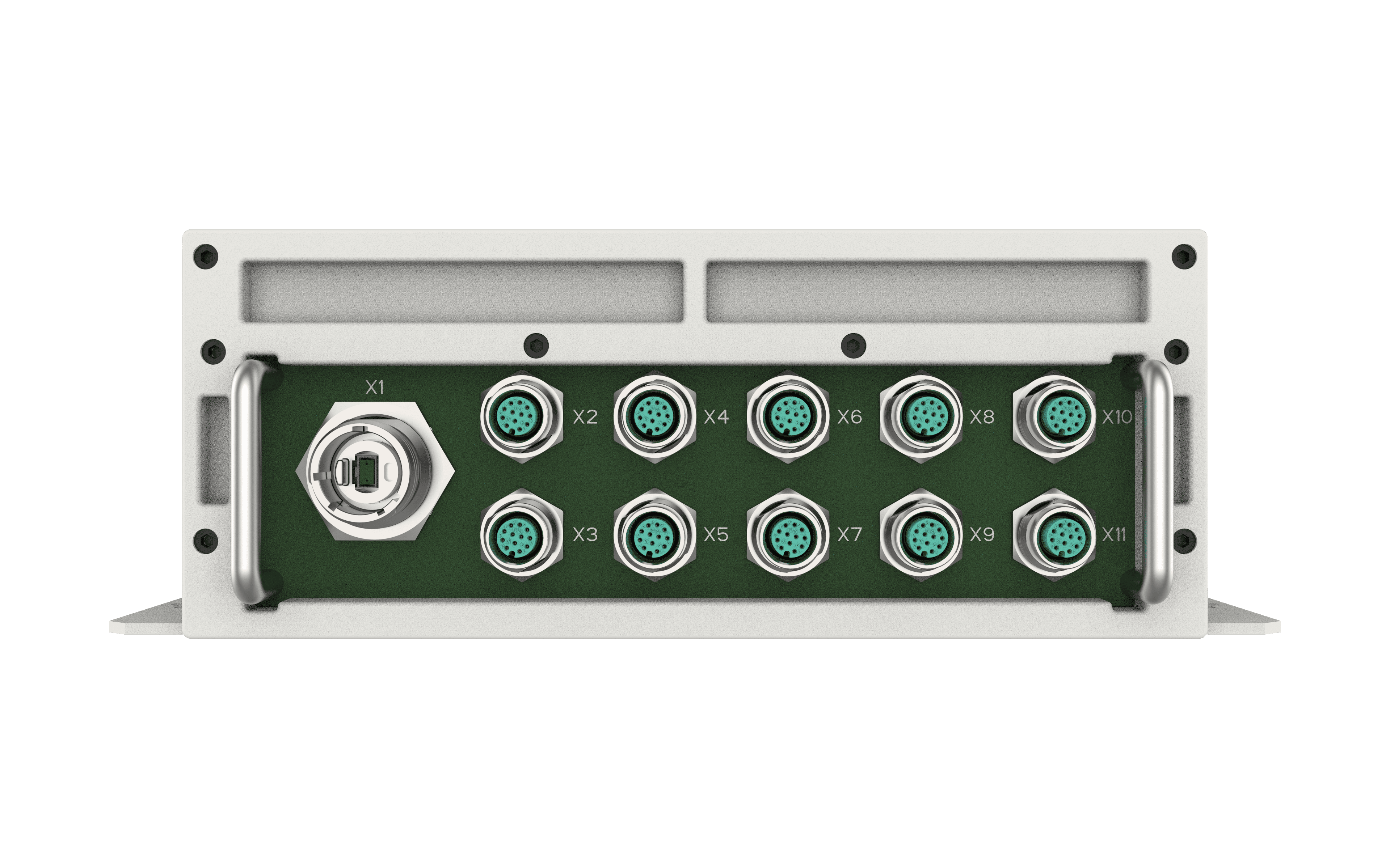

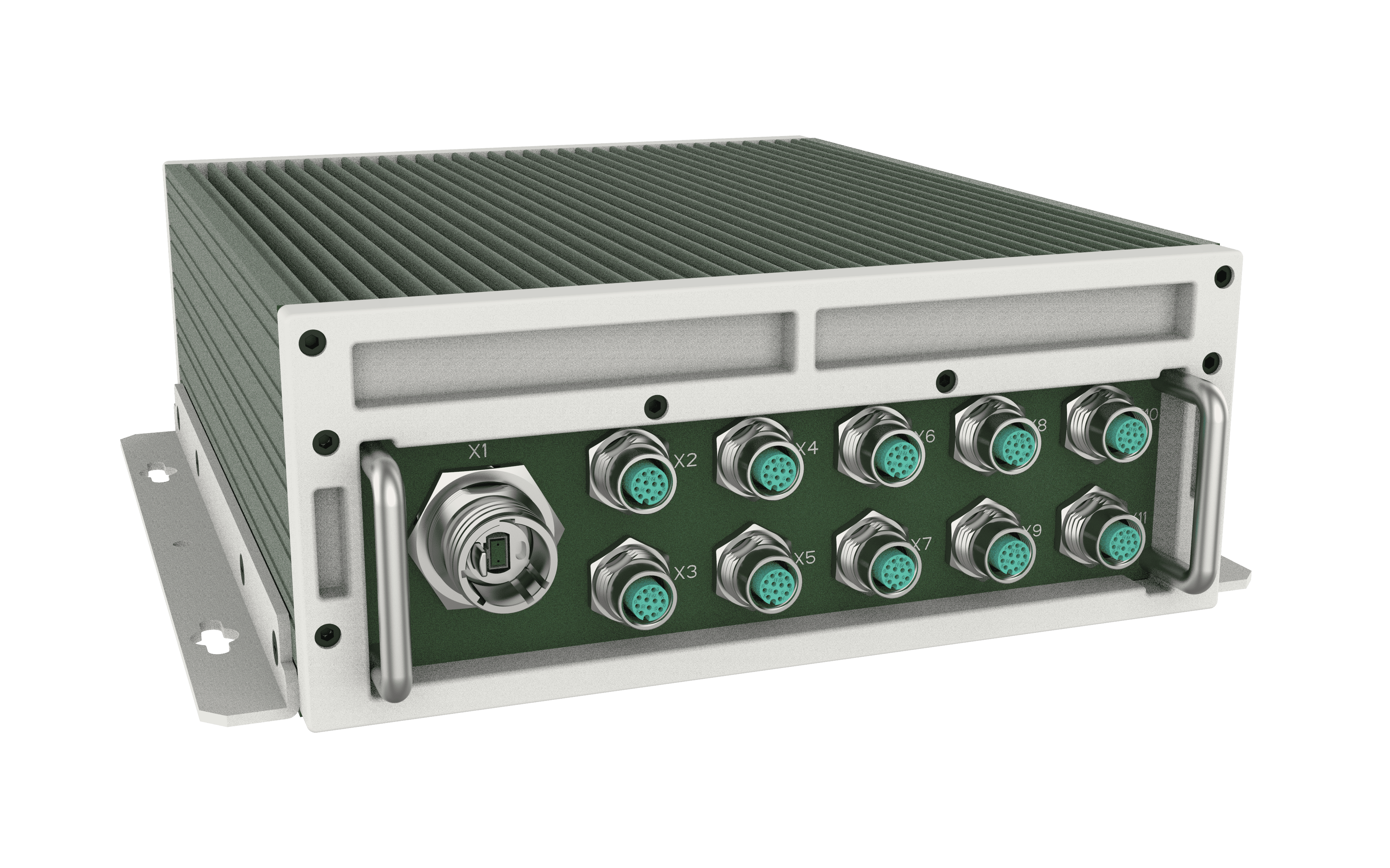

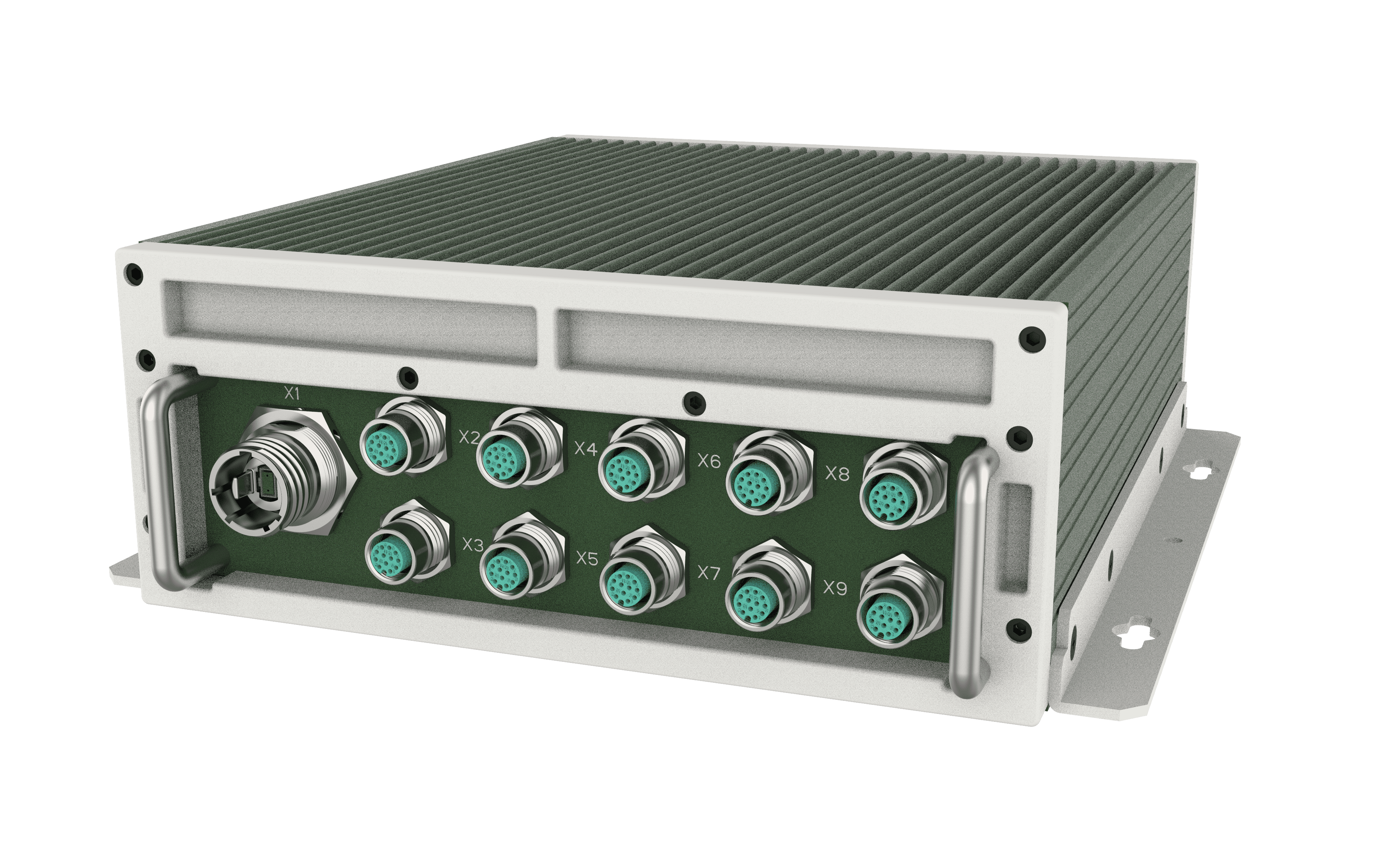

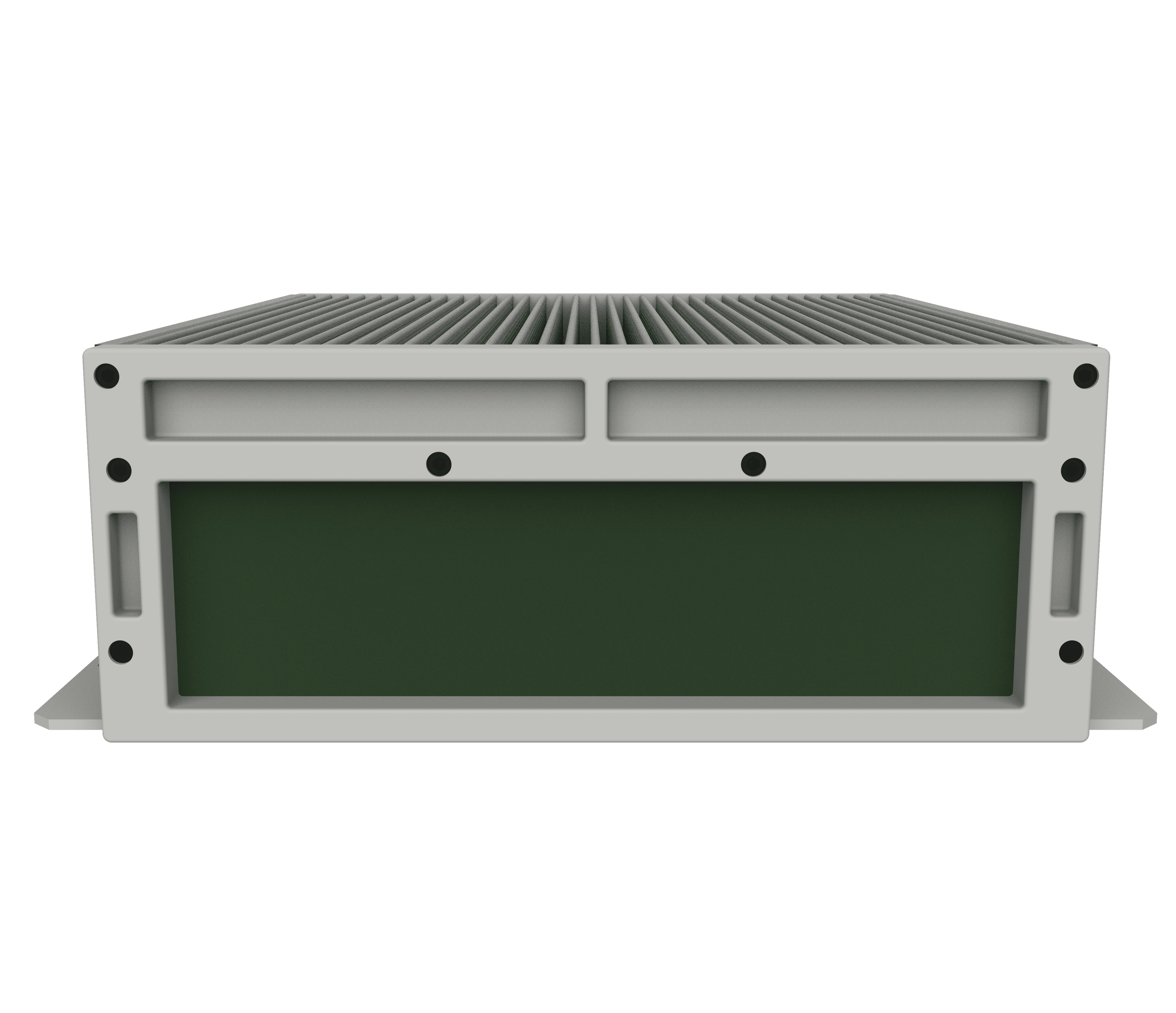

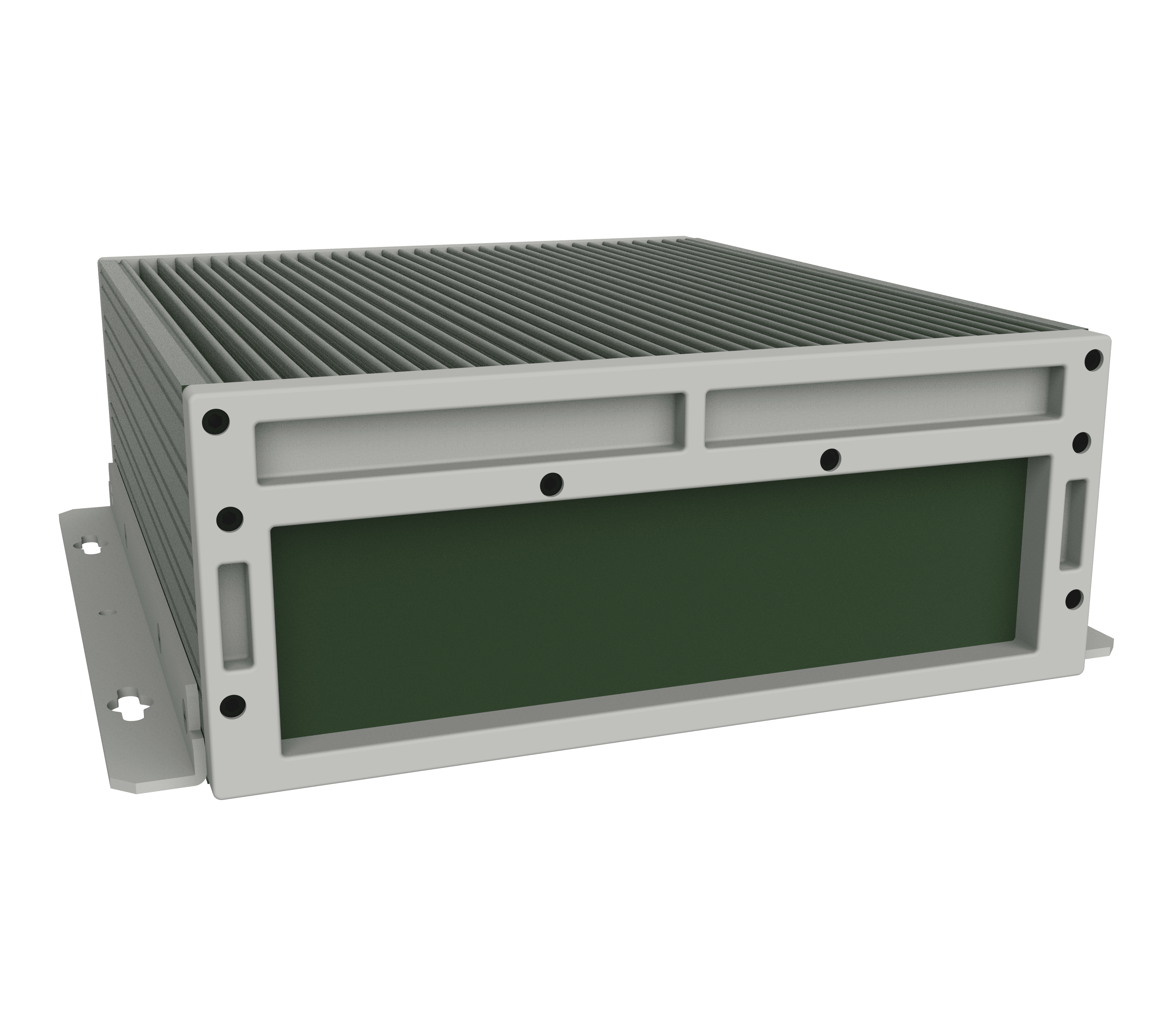

- Appearance
|
System |
||
|---|---|---|
|
Switch Technology |
Store and Forward Technology with Non-Blocking Switch Fabric |
|
|
Number of MAC Address |
4K | |
|
Packet Buffer Memory |
1.75M bits | |
|
Transfer performance |
10Base-T: 14,880pps, 100Base-TX/FX: 148,800pps, 1000Base-TX/FX: 1,488,100pps |
|
|
VLAN |
4095 VLANs |
|
|
Traffic Prioritize |
8 Priority Queues Per Port |
|
|

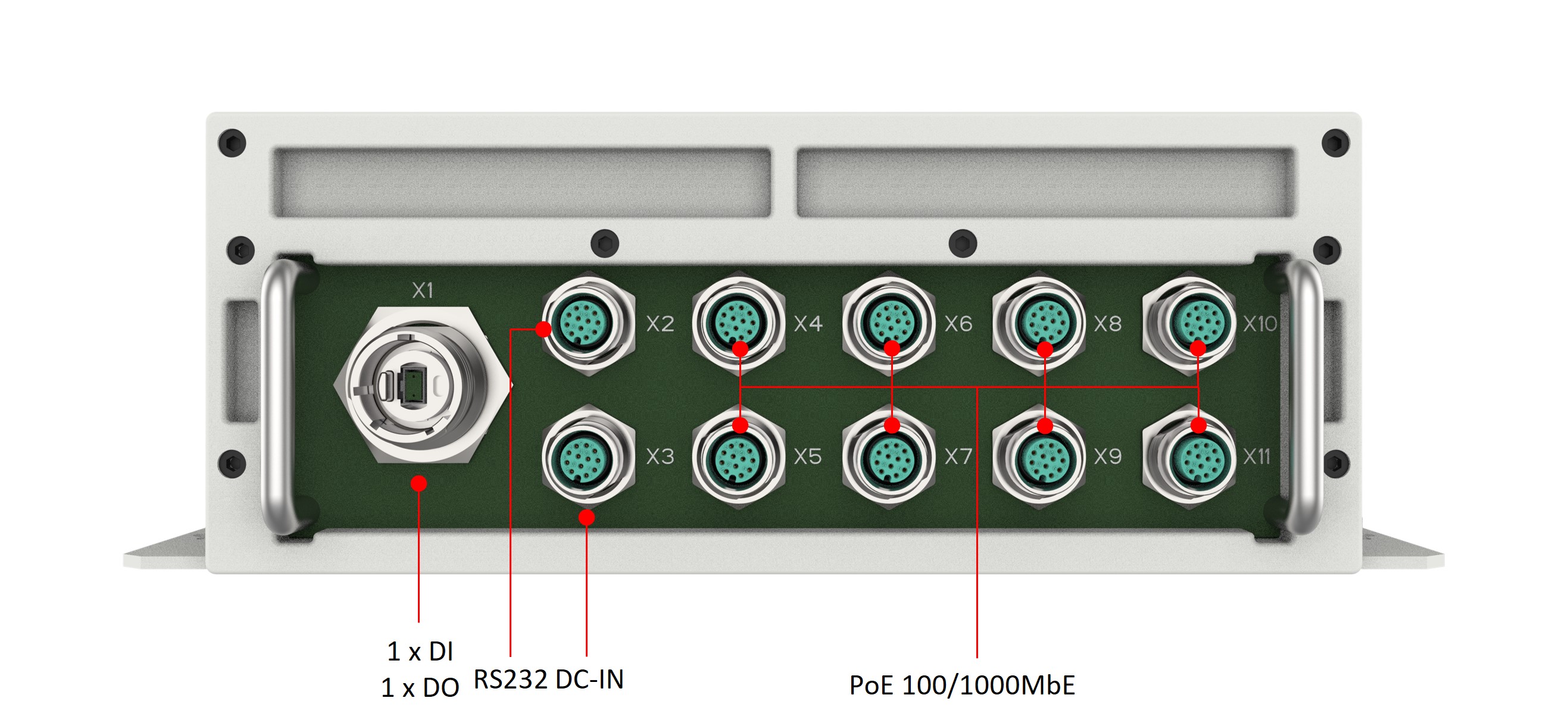

I/O Port |
||
|
Ethernet Port |
8 x 100/1000Base-T with M12 |
|
|
Console |
1 x RS232 with M12 |
|
|
Digital Input, Digital Output |
1 x DI, 1 x DO with D38999 |
|
|
Power Input |
1 x DC-IN with M12 | |
|
Software |
||
|
Management |
WebGUI, Command Line Interface (CLI), Telnet, SNMP | |
|
Network Management |
IPv4 management, SNMP v1/v2c/v3/Trap, MIBs, LLDP, DHCP client, TFTP, System Log, NTP | |
|
Traffic Management |
Flow Control, Port Trunk/802.3ad LACP, VLAN, Private VLAN, Shared VLAN, Rate Limiters, Port Mirror, IGMP Snooping v2, Port classification, Port policing, Port scheduler, Port shaping, QoS control list, Storm policing, WRED, Port Security, ACL, Loop Protection | |
|
Security |
IEEE 802.1X/RADIUS, Management IP, Management VLAN, SSL | |
|
Redundancy |
Rapid Spanning Tree Protocol/Spanning Tree Protocol (RSTP/STP) | |
| Power Requirement | ||
| Power Input |
18V~36V DC |
|
| Mechanical | ||
| Dimensions |
250 x 250 x 105 mm |
|
| Weight |
5kg (final weight is dependent on specific system configuration) |
|
|
Chassis |
Aluminum AL6061 | |
|
Heatsink |
Aluminum Alloy, Corrosion Resistant. | |
|
Finish |
Anodic aluminum oxide. | |
|
Cooling |
Natural Passive Convection/Conduction. No Moving Parts | |
|
Ingress Protection |
IP65 | |
|
Environmental |
||
| Reliability |
No Moving Parts; Passive Cooling. Designed & Manufactured using ISO 9001/2000 Certified Quality Program. |
|
| Operating Temp. | -40 to 70°C (ambient with air flow) | |
|
Storage Temp. |
-40 to 85°C | |
| Relative Humidity | 0% to 95%, non-condensing. | |
|
Supported IEEE Standards |
||
| IEEE 802.3 |
10Base-T Ethernet |
|
| IEEE 802.3u |
100Base-TX Fast Ethernet |
|
| IEEE 802.3u |
100Base-FX Fast Ethernet Fiber |
|
| IEEE 802.3ab |
1000Base-T Gigabit Ethernet Copper |
|
| IEEE 802.3z |
Gigabit Ethernet Fiber |
|
| IEEE 802.3x |
Flow Control and back-pressure |
|
| IEEE 802.1AB |
Link Layer Discovery Protocol (LLDP) |
|
| IEEE 802.1p |
Class of Service (CoS) |
|
| IEEE 802.1Q |
VLAN |
|
| IEEE 802.1D-2004 |
Rapid Spanning Tree Protocol (RSTP, backward compatible 802.1w) |
|
| IEEE 802.3ad |
Link Aggregation Control Protocol (LACP) |
|
| IEEE 802.1X |
Port based Network Access Protocol |
|
| IEEE 802.3at |
Power Over Ethernet Plus(PoE+), backward compatible with 802.3af PoE |
|
|
MIL-STD-810 Environment Testing Standards |
||
|
Method 501, Operational Temperature, high: |
Procedure II: +60°C, two-hour dwell, four cycles | |
|
Method 501, Storage Temperature, high: |
Procedure I: +70°C, two-hour dwell, four cycles | |
|
Method 502, Operational Temperature, low: |
Procedure II: -20°C, two-hour dwell, four cycles | |
|
Method 502, Storage Temperature, low: |
Procedure I: -30°C, two-hour dwell, four cycles | |
|
Method 514, Vibration: |
Category 24/Non-Operating (Category 20 & 24, Vibration) | |
|
Method 514, Vibration: |
Category 20/Operating (Category 20 & 24, Vibration) | |
|
Method 516, Shock: |
Procedure V Non-Operating (Mechanical Shock) | |
|
Method 516, Shock: |
Procedure I Operating (Mechanical Shock) | |
|
MIL-STD-461 ELECTROMAGNETIC Testing Standards |
||
|
CE102 |
Conducted emissions, power leads, 10KHz to 10MHz | |
|
RE102 |
Radiated emissions, electric filed, 30MHz to 5GHz | |
| RS103 |
Radiated susceptibility, electric filed, 80Mhz to 3GHz |
|
